SamtecTSW-208-07-L-TPiastre connettori e prese PCB

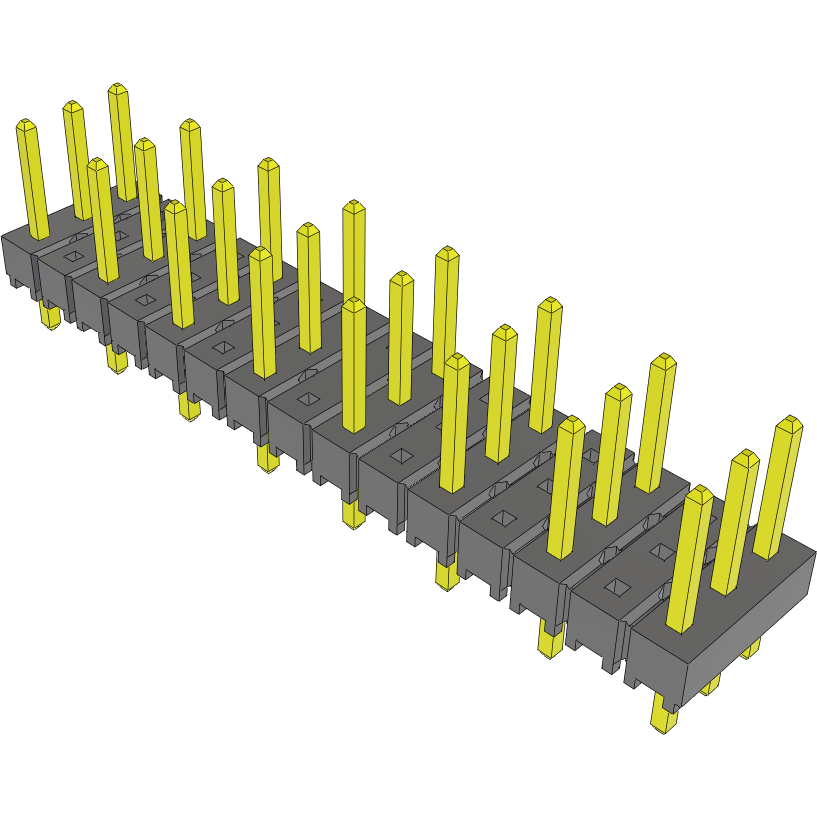

Reduce safety concerns with this unshrouded TSW-208-07-L-T header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector's 24 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. It has a header type gender. This is a 3-row connector. Its pitch is 5.08 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. TSW-208-07-L-T is housed in black polyester. This product is 38.1 mm long, 8.38 mm tall and 7.62 mm deep. It uses the solder termination method.
