| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Step Down | |
| 1 | |
| 2.5 | |
| 6 | |
| 0.8 to 6 | |
| 2 | |
| DC/DC | |
| 0.0007 | |
| 2400(Typ) | |
| Yes | |
| 0.16%/A(Typ) | |
| 0.02%/V(Typ) | |
| 95 | |
| Positive | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Adjustable | |
| Mounting | Surface Mount |
| Package Height | 1.33(Max) |
| Package Width | 2.9(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 8 |
| Standard Package Name | SIP |
| Supplier Package | uSIP SMD EP |
| 8 | |
| Lead Shape | No Lead |

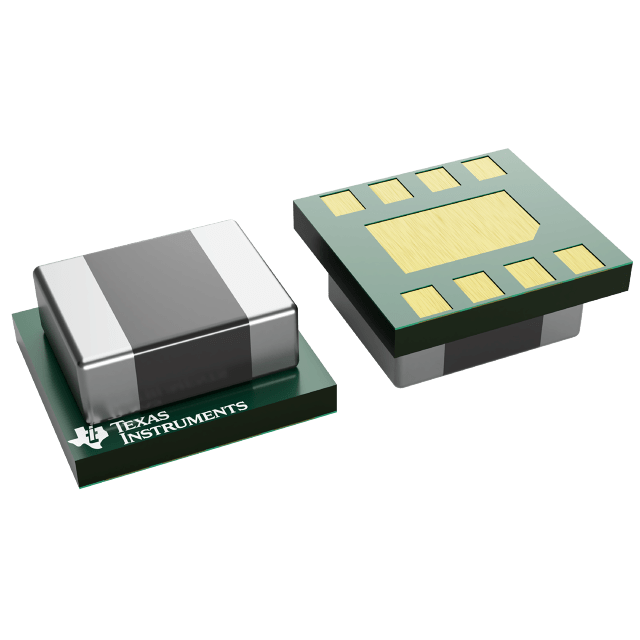

Adjust the voltage level of your devices with this step down TPS82084SILT DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.5 V and no higher than 6 V. With an adjustable output that has a voltage of 0.8 to 6 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.16%/A(Typ) and line regulation of 0.02%/V(Typ). This device has a typical switch current of 3.6 A. This converter is 95 % efficient. This part offers a switching frequency of 2400(Typ) kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
