| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| LDO | |
| 2 | |
| Positive | |
| ±1.5 | |
| Adjustable|Fixed | |
| 1.2 to 5.5|3.3 | |
| 0.25 | |
| 2.7 | |
| 5.5 | |
| 0.23@250mA | |
| 1.225(Typ) | |
| 0.05%/V(Typ) | |
| 0.8%/mA(Typ) | |
| 1920 | |
| 52°C/W | |
| 48°C/W | |
| Current Limit|Excellent Line and Load Transient Response|Thermal Shutdown Protection | |
| -40 | |
| 125 | |
| Extended | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 10 |
| Standard Package Name | SON |
| Supplier Package | VSON EP |
| 10 | |
| Lead Shape | No Lead |

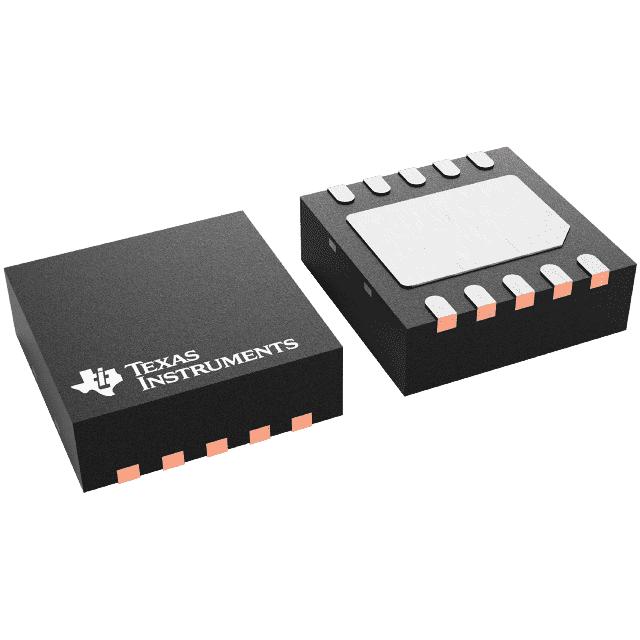

Use this LDO TPS71334DRCT linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.125@250mA V. This device has a maximum power dissipation of 1920 mW. It has an overall accuracy of ±1.5 %. This voltage regulation device's 2 outputs can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 5.5 V to effectively power your circuit. With an adjustable|fixed output that has a voltage of 1.2 to 5.5|3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.8%/mA(Typ) and line regulation of 0.05%/V(Typ). Its maximum power dissipation is 1920 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.23@250mA V.
| EDA / CAD Models |
