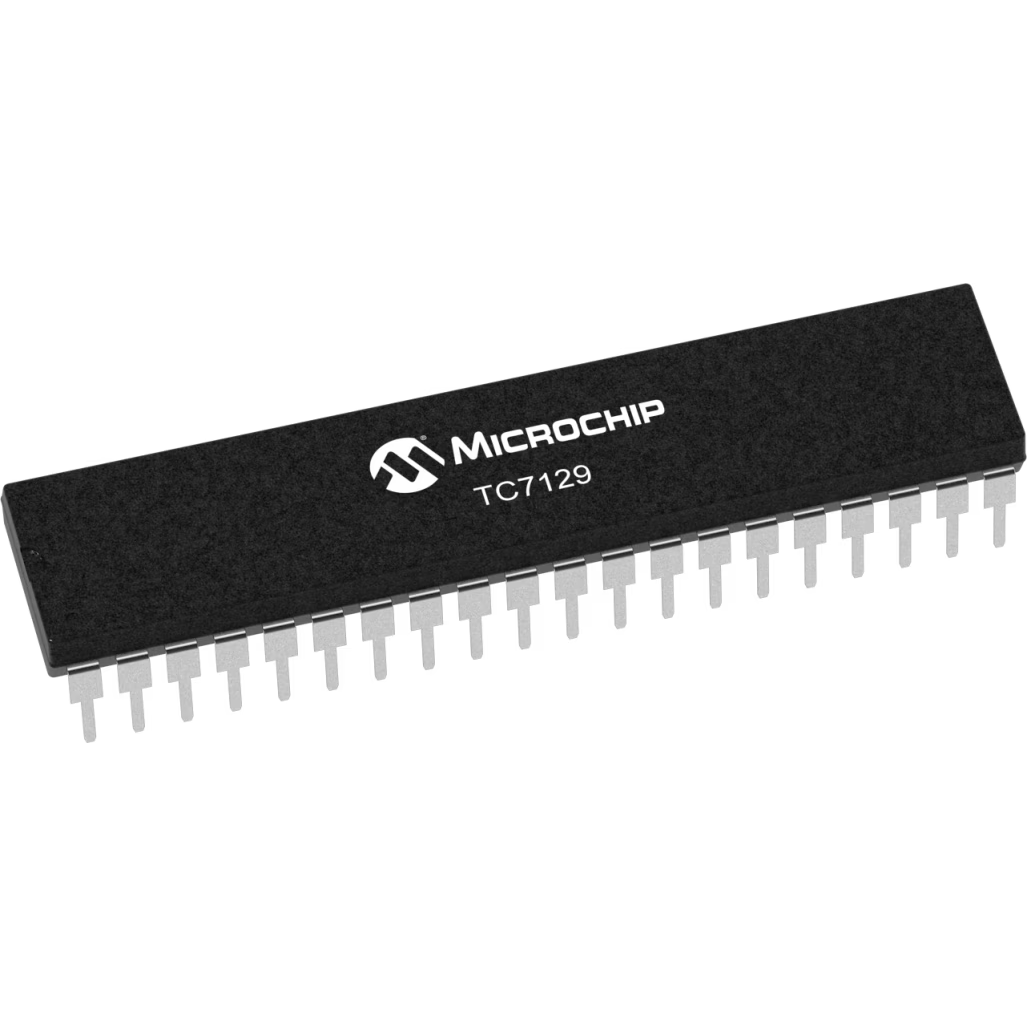

Microchip TechnologyTC7129CPLADC
1-Channel Single ADC Dual Slope 4 1/2Digit LCD 40-Pin PDIP Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.30 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| CMOS | |
| Dual Slope | |
| 4 1/2Digit | |
| 1 | |
| 1 | |
| LCD | |
| Voltage | |
| Differential | |
| External | |
| Single|Dual | |
| ±5 | |
| 1230 | |
| 1Counts(Typ) | |
| No | |
| No | |
| 0 | |
| 70 | |
| Tube | |
| Mounting | Through Hole |
| Package Height | 4.95(Max) mm |
| Package Width | 14.73(Max) mm |
| Package Length | 53.21(Max) mm |
| PCB changed | 40 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| 40 | |
| Lead Shape | Through Hole |
Microchip Technology offers this TC7129CPL ADC that will easily convert your continuous analog signals into digital data without altering essential content. This device's digital interface is lcd. It has a differential input signal. Its maximum power dissipation is 1230 mW. This device is based on Dual Slope architecture. This ADC has a resolution of 4 1/2Digit. Its typical dual supply voltage is ±5 V. This ADC has a temperature range of 0 °C to 70 °C.
