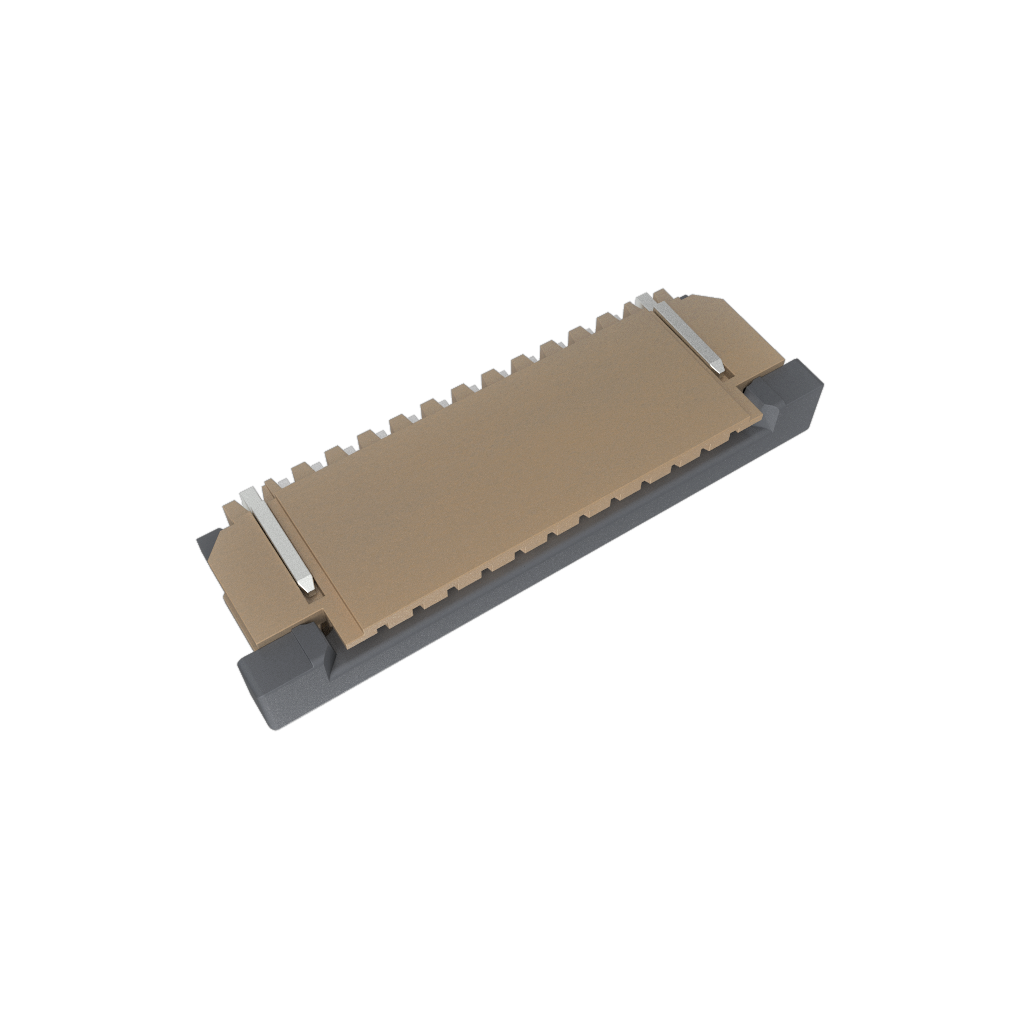

Amphenol Communications SolutionsSFW12R-2STE1LFConnettore FFC-FPC
1.00mm Flex Connector, SFW-R series, 12 Position, Upper Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| FFC/FPC Connector | |
| 12 | |
| 1 | |
| Solder | |
| 1 | |
| Right Angle | |
| SKT | |
| 1/Contact | |
| 100VDC|100VAC | |
| 500 | |
| 30 | |
| -55 | |
| 105 | |
| 20 | |
| Tape and Reel | |
| 17.8 | |
| 6.5 | |
| 2.7 | |
| Surface Mount |
This ffc/fpc connector SFW12R-2STE1LF flexible printed circuit from FCI can have discrete components built on it. This socket type connector's 12 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a right angle body orientation. Its pitch is 1 mm. It has a maximum voltage rating of 100 VDC|100VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. SFW12R-2STE1LF is housed in brown polyphenylene sulfide. It uses the solder termination method. This product is 17.8 mm long, 2.7 mm tall and 6.5 mm deep. This flexible flat cable has an operating temperature of -55 to 105 °C.
