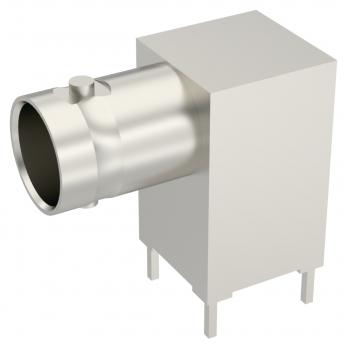

RadiallR141665200Connettore RF
Conn BNC 0Hz to 1.5GHz 50Ohm Solder RA Thru-Hole RCP Gold Standard
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| BNC | |
| RCP | |
| Solder | |
| Right Angle | |
| F | |
| Gold | |
| 0 to 1.5G | |
| 0.04 | |
| 500VAC | |
| 50 | |
| 5000 | |
| Bayonet Lock | |
| 100 | |
| Standard | |
| -35 | |
| 70 | |
| Standard | |
| 22.1 | |
| 12 | |
| 24.3 | |
| 20.5 | |
| Through Hole |
The bnc R141665200 RF connector from Radiall will make sure your RF components are shielded properly when connected. This connector's body is plated in nickel. It has a receptacle type gender. It has a right angle body orientation. It has an operating frequency of 0 to 1.5G Hz. It uses the solder termination method. This product is 12 mm long, 20.5 mm tall and 24.3 mm deep. This rf connector has an operating temperature of -35 to 70 °C.
