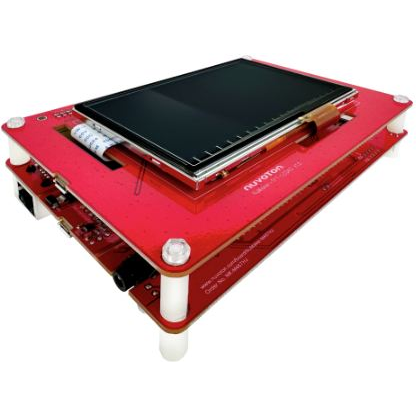

NuMaker-HMI-M467 Evaluation Board

The NuMaker-HMI-M467 is an evaluation platform for the Nuvoton NuMicro® M467 series microcontrollers (M467SJ, M467KJ, M467JJ, M467HJ). It is designed for project evaluation, prototyping, and validation of Human Machine Interface (HMI) applications.

Key Components

NuMaker-M467HJ Base Board

• Includes:
• •  M467HJ target board (based on NuMicro M467HJHAN)
• •  On-board Nu-Link2-Me debugger/programmer

• Features:
• •  Extension connectors and Arduino UNO–compatible headers
• •  Multiple power supply options
• •  Nuvoton-designed ammeter connector for instant power consumption measurement
• •  On-chip debugging, online/offline ICP programming via SWD
• •  Virtual COM (VCOM) port for debug message output to PC
• •  Programming status shown on built-in LEDs
• •  Detachable Nu-Link2-Me can serve as a stand-alone mass-production programmer

NuMaker-TFT-LCD43 Daughter Board (Included)

• •  A companion board that requires the NuMaker-M467HJ base board
• •  Equipped with:
• •  4.3" 480 × 272 RGB TFT-LCD
• •  Capacitive touch panel
• •  Extends the evaluation board into a complete HMI development platform

Integrated Features

• •  Touchscreen display
• •  Voice input/output
• •  Rich serial ports and I/O interfaces
• •  Multiple external storage options

Software Support

• The NuMaker-HMI-M467 supports multiple GUI frameworks:
• •  RT-Thread LVGL
• •  Segger emWin AppWizard
• •  Qt for MCUs

These libraries help developers build dynamic, responsive user interfaces with ease. Refer to the NuMaker-HMI-M467 User Manual for details on graphics library integration.

Watch this Video about M467 e-Bike Dashboard Design
