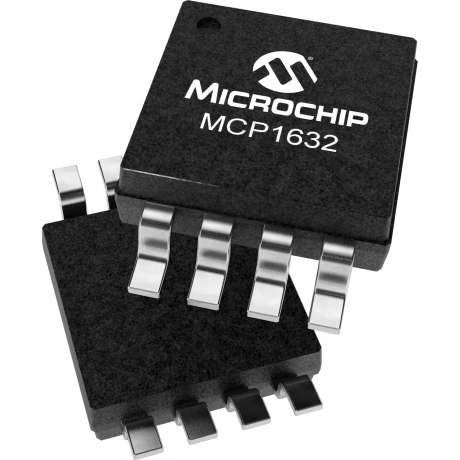

Microchip TechnologyMCP1632-AAE/MSPWM Controllers in modalità corrente
Current Mode PWM Controller 350kHz 8-Pin MSOP Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.31.00.30 | |
| Automotive | Unknown |
| PPAP | Unknown |
| Current Mode PWM Controller | |
| Current Mode PWM Controller | |
| Boost|Flyback | |
| 350 | |
| 95 | |
| 3 | |
| 5.5 | |
| No | |
| Yes | |
| No | |
| -40 | |
| 125 | |
| Extended | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 0.85 |
| Package Width | 3 |
| Package Length | 3 |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | MSOP |
| 8 | |
| Lead Shape | Gull-wing |
This MCP1632-AAE/MS current controller by Microchip Technology will provide current from an external source to an external system in order to properly create a barrier. This current mode controller supports boost|flyback topology. It has a switching frequency of 300(Typ) kHz. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C. This current mode controller's maximum duty cycle is 95 %. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5 V.
