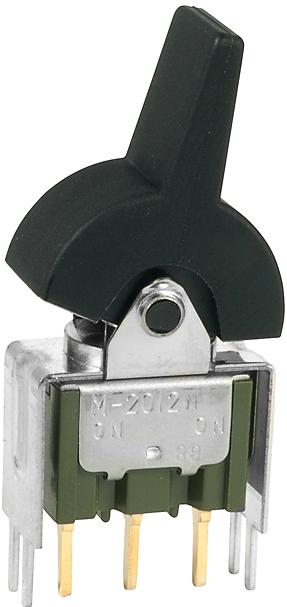

NKK SwitchesM2012TXG13-EASwitch Rocker
Switch Rocker ON None ON SPDT PC Pins Small Paddle 0.1A 28VAC 28VDC 0.4VA 50000Cycles
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| SPDT | |
| ON None ON | |
| Small Paddle | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 1000VAC | |
| 1000 | |
| 20 | |
| 50000 | |
| 50000 | |
| Black | |
| 16.8 | |
| 1 | |
| Bracket Mount/Through Hole | |
| PC Pins | |
| 3 | |
| 6.35 | |
| 4.7 | |
| Terminals | |
| Epoxy | |
| Black | |
| Straight | |
| -30 | |
| 85 | |
| 16.3 | |
| 8 | |
| 15.3 | |
| 16.3 | |
| 9.27 | |
| 34.1 | |
| 9.27 | |
| 18.8 |
Implementing this M2012TXG13-EA rocker switch from NKK Switches will give the user complete control of whether your design is on or not. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2012TXG13-EA rocker switch panel has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 16.3 mm long, 34.1 mm tall and 9.27 mm deep.
