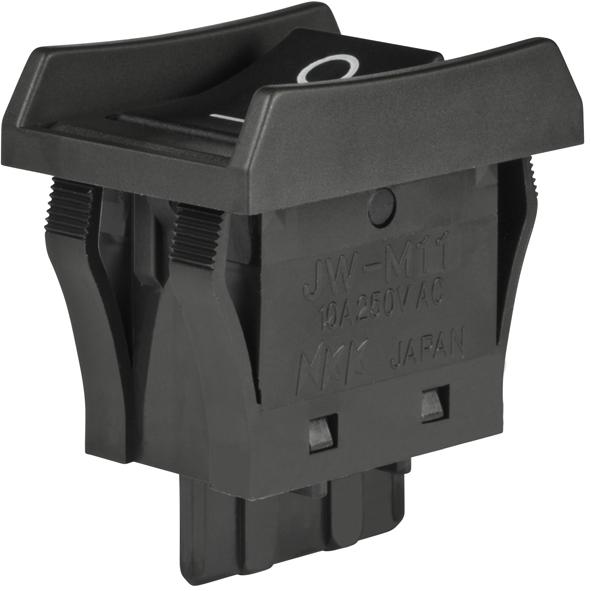

NKK SwitchesJWM11BA1A-ASwitch Rocker
Switch Rocker ON None OFF SPST Quick Connect/Solder Lug Curved Rocker 10A 250VAC 25000Cycles
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| SPST | |
| ON None OFF | |
| Curved Rocker | |
| 10@250VAC | |
| 16 | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 25000 | |
| Black | |
| 19.6 | |
| 1 | |
| 7.7 | |
| Panel Mount | |
| Quick Connect/Solder Lug | |
| 2 | |
| 7.5 | |
| Inner/Terminals | |
| Dust Resistant(Polyphenylene Sulfide)/Epoxy | |
| Melamine | |
| Black | |
| Polyamide | |
| Black | |
| Black | |
| Straight | |
| -25 | |
| 70 | |
| 30 | |
| 22.2 | |
| 20.9 | |
| 30 | |
| 22.2 | |
| 33.6 | |
| 13.6 | |
| 4 |
Do you need a safe way to turn off and on your device? Use this JWM11BA1A-A rocker switch from NKK Switches for a sleek look. This device has a maximum current rating of 10 A @ 250VAC. It has a SPST configuration. This rocker switch panel has a minimum operating temperature of -25 °C and a maximum of 70 °C. The JWM11BA1A-A rocker switch panel has a quick connect/solder lug termination style. This product is 30 mm long, 33.6 mm tall and 22.2 mm deep. The maximum AC voltage rating is 250 VAC.
