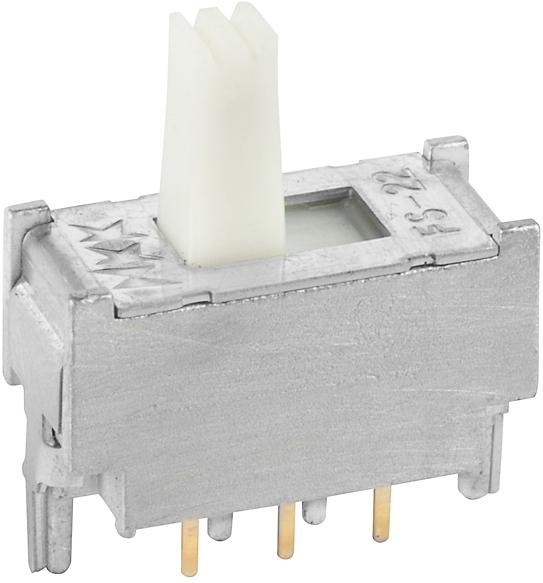

NKK SwitchesFS22AAPInterruttore a slitta
Switch Slide ON None ON DPDT Extended Top Slide 0.1A 28VAC 28VDC 0.4VA 1000Cycles PC Pins Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| Automotive | No |
| PPAP | No |
| Extended Top Slide | |
| DPDT | |
| ON None ON | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 250 | |
| 200 | |
| 1000 | |
| 1000 | |
| Through Hole | |
| PC Pins | |
| 6 | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| 17 | |
| 7.4 | |
| 17 |
Turn your circuit on or off using the FS22AAP slide switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This slide switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The FS22AAP slide switch has a PC pin termination style. This product is 17 mm long, 17 mm tall and 7.4 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
