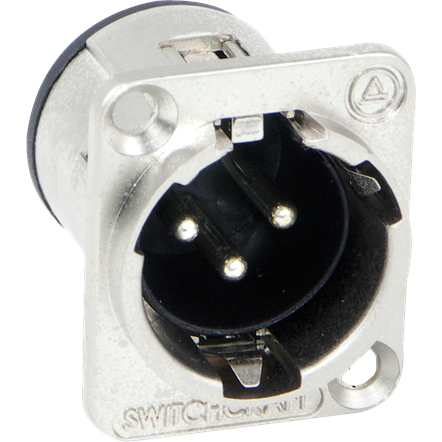

SwitchcraftE3MSCConnettore audio e video
Conn XLR Connector M 3 POS Solder Cup ST Panel Mount 4 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| EA | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| XLR Connector | |
| M | |
| 3 | |
| 4 | |
| 1 | |
| Solder Cup | |
| Straight | |
| 15 | |
| 2000000 | |
| 50 | |
| -55 | |
| 85 | |
| 10000 | |
| Die Cast | |
| Satin Nickel|Black velvet | |
| Black | |
| 26 | |
| 32 | |
| 31 | |
| Panel Mount | |
| Glass Filled Thermoplastic | |
| Silver | |
| Copper Alloy |
Run your audio and video effectively with the xlr connector E3MSC audio and video connector from Switchcraft. This M connector's 3 contacts that are made out of copper alloy and plated with silver. It has a male type gender. This connector has a single port. It has a straight body orientation. E3MSC is housed in thermoplastic. This device has a maximum current rating of 15 A. This product is 26 mm long, 31 mm tall and 32 mm deep. Its 4 terminals use the solder cup termination method. This part has a minimum operating temperature of -55 °C and a maximum of 85 °C.
| EDA / CAD Models |
