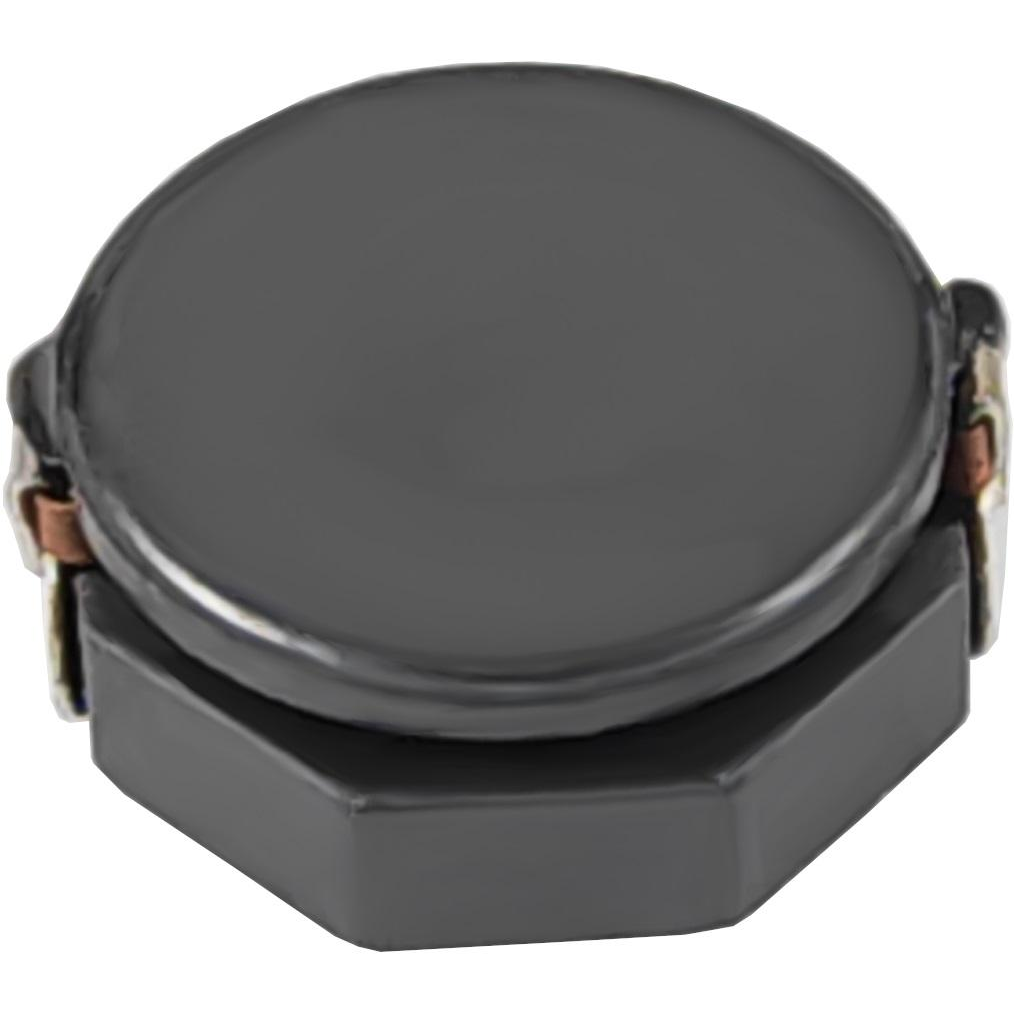

SumidaCDPH4D19FNP-100MCMontaggio superficie induttore
Inductor Power Shielded Drum Core 10uH 20% 100KHz Ferrite 2.32A 0.065Ohm DCR 2020 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Drum Core | |
| Shielded | |
| Ferrite | |
| 10u | |
| 20% | |
| 100K | |
| 2.32 | |
| 0.8 | |
| 0.065 | |
| 2 | |
| 2020 | |
| -40 | |
| 105 | |
| Tape and Reel | |
| 5.2 | |
| Surface Mount | |
| 5.2 | |
| 2 |
This power CDPH4D19FNP-100MC surface mount inductor from Sumida Corporation is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 2.32 A with a maximum resistance of 65m Ohm. Its test frequency is 100K Hz. It has an inductance of 10u H. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. It has a tolerance of 20%. This device is made with drum core technology.
