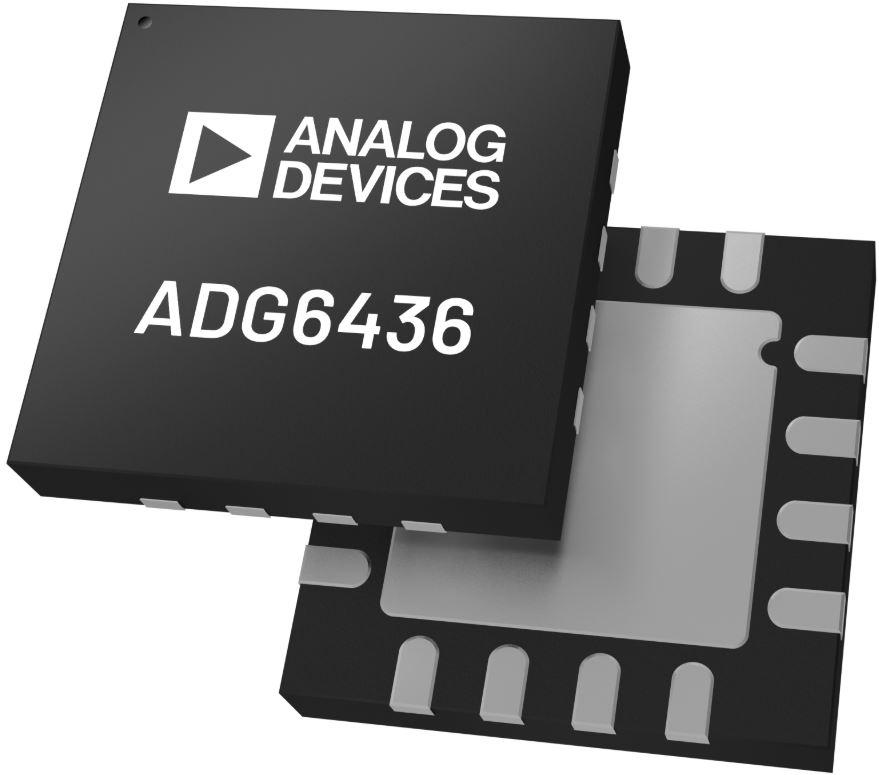

ADG6436: 0.5 Ω R_ON, ±20 V, +36 V, Dual SPDT Switch

The ADG6436 is an analog multiplexer containing two independently selectable single-pole, double-throw (SPDT) switches. An EN input is used to disable all of the switches. For use in multiplexer applications, both switches exhibit break-before-make switching action.

Each channel in the ADG6436 conducts equally well in both directions when on, and each switch has an input signal range that extends from V_SS to V_DD − 2 V. When switches are disabled, the signal levels up to the supplies are blocked.

The digital inputs are compatible with 5 V, 3.3 V, and 1.8 V logic inputs without the requirement for a separate digital logic supply pin.

The on-resistance profile is exceptionally flat over the full analog input range, which ensures good linearity and low distortion when switching audio signals.

Key Features and Benefits

• •  Low R_ON: 0.5 Ω
• •  High continuous current of up to 847 mA
• •  Flat RON across signal range: 0.003 Ω
• •  THD of −109 dB at 1 kHz
• •  Improved balance between on resistance and on capacitance
• •  Low R_ON (0.5 Ω) and C_ON (95 pF)
• •  1.8 V, 3.3 V, and 5 V logic compatibility
• •  16-lead, 4 mm × 4 mm LFCSP
• •  Pin to pin compatible with the ADG5436and ADG5436F
• •  Fully specified at ±20 V and +36 V
• •  Operational with asymmetric power supplies
• •  V_SS to V_DD − 2 V analog signal range

Applications

• •  Automatic test equipment
• •  Data acquisition
• •  Instrumentation
• •  Avionics
• •  Audio and video switching
• •  Communication systems
• •  Relay replacement

Evaluation Board

The ADG6436 can be evaluated with the EVAL-ADG6436.
