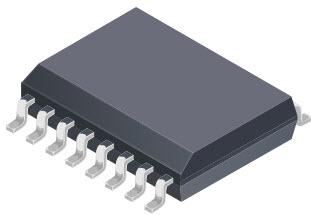

Allegro MicroSystemsACS37002KMABTR-050B3 | kHz High-Accuracy Hall-Effect Current SensorSensori di corrente
Current Sensor Current Sensor DC Current 3.3V 16-Pin SOIC W T/R Automotive AEC-Q100
4 Gain Select Options in the Same Package
Features and Benefits
- High accuracy
- 1% Sensitivity error from 25ºC to 125ºC (K version)
- 1.75% Sensitivity error from –40ºC to 150ºC (L version)
- Low Offset <10 mV over temperature
- Non-ratiometric output with reference output
- Compact SOW-16 package
- Internal conductor resistance as low as 0.27 mΩ
- High Isolation - Up to 5 kVRMS Withstand Voltage
- Wide Operating Bandwidth
- 400 kHz
- 4 Pin-selectable Gain Options
- Bidirectional or Unidirectional
- 33 A to 133 A Ranges
- Fast overcurrent detection
- 1.5 µs max response time
- Resistor adjustable set point
- Differential Hall Sensors for Stray-field Immunity
- 3.3 V or 5 V Operation
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | Yes |
| PPAP | Unknown |
| IC | |
| DC | |
| ±1.75 | |
| 1.1 | |
| 6.5 | |
| 3.15 | |
| 3.3 | |
| 3.6 | |
| 39.6 | |
| -40 | |
| 125 | |
| Automotive | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 2.35(Max) |
| Package Width | 7.5 |
| Package Length | 10.3 |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | SOIC W |
| 16 |
