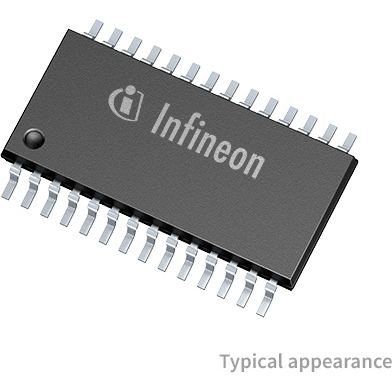

Infineon Technologies AG6ED003L02F2XUMA1Gate driver e Driver di potenza
Driver 0.42A 6-OUT High Side/Low Side Full Brdg 28-Pin TSSOP T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| High Side|Low Side | |
| Full Bridge | |
| 6 | |
| Independent | |
| IGBT|MOSFET | |
| 6 | |
| 100 | |
| 45 | |
| 800 | |
| CMOS|LSTTL|3.3V(Min) | |
| 13 | |
| 17.5 | |
| 0.9 | |
| 2.1 | |
| 0.42(Typ) | |
| 600 | |
| -40 | |
| 105 | |
| Current Limit|Undervoltage Lockout | |
| 100 | |
| 100 | |
| Yes | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 1 |
| Package Width | 4.4 |
| Package Length | 9.7 |
| PCB changed | 28 |
| Standard Package Name | SO |
| Supplier Package | TSSOP |
| 28 | |
| Lead Shape | Gull-wing |
Infineon Technologies' 6ED003L02F2XUMA1 power driver will help with fast switching within your circuit. This device has a maximum propagation delay time of 800 ns and a maximum power dissipation of 600 mW. Its maximum power dissipation is 600 mW. This device has a minimum operating supply voltage of 13 V and a maximum of 17.5 V. This gate driver has a minimum operating temperature of -40 °C and a maximum of 95 °C.
