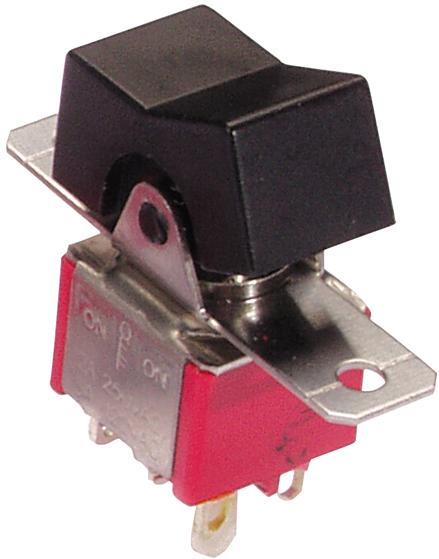

Grayhill47ADP2J1M6QTSwitch Rocker
Switch Rocker ON None (ON) DPDT PC Pins Rocker 5A 250VAC 28VDC
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| DPDT | |
| ON None (ON) | |
| Rocker | |
| 5@125VAC 28VDC | |
| 1000Vrms | |
| 1000 | |
| 10 | |
| 40000 | |
| 2 | |
| 3.81 | |
| Bracket Mount/Through Hole | |
| PC Pins | |
| 6 | |
| 3.18 | |
| 4.7 | |
| Terminals | |
| Epoxy | |
| Right Angle | |
| -30 | |
| 85 | |
| 12.7 | |
| 16.99 | |
| 11.45 | |
| 29.03(Norm) | |
| 11.45 | |
| 7.59(Norm) | |
| 9.27 |
Safely turn on and off designs with this 47ADP2J1M6QT rocker switch from Grayhill. This device has a maximum current rating of 5 A @ 125VAC 28VDC. It has a DPDT configuration. This rocker switch panel has an operating temperature range of -30 °C to 85 °C. The 47ADP2J1M6QT rocker switch panel has a PC pin termination style. This product is 29.03(Norm) mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.
