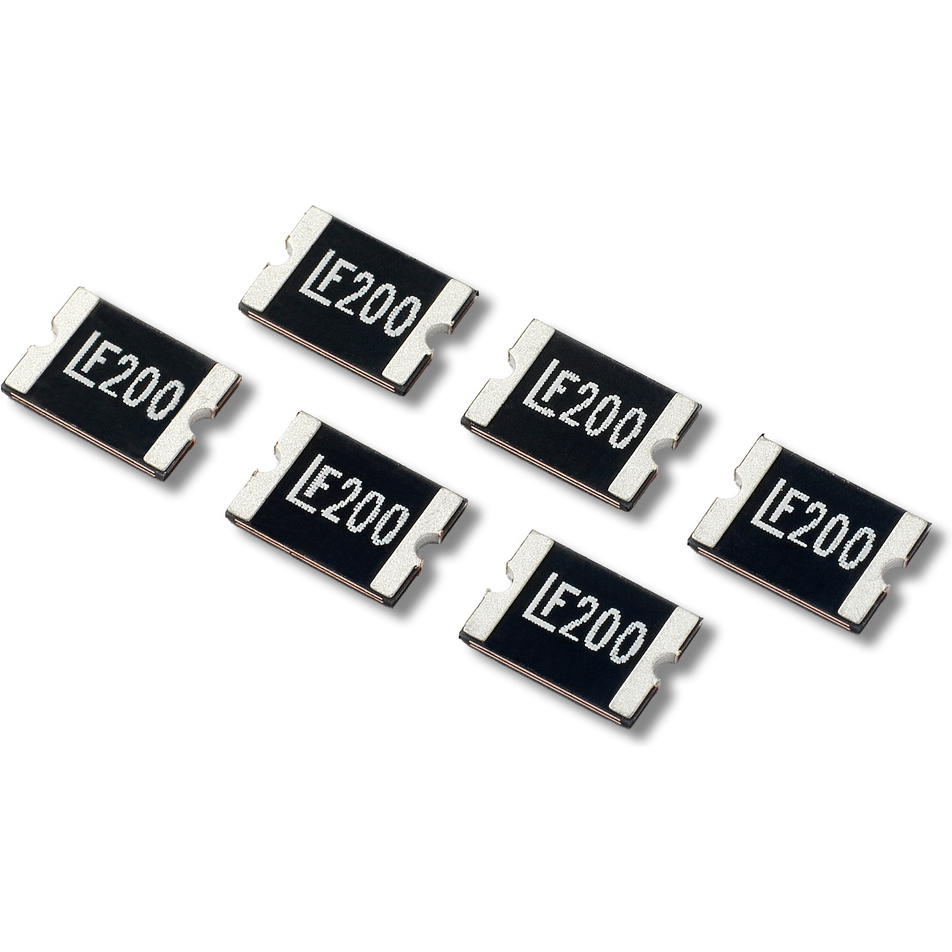

Littelfuse1812L075/24DRFusibile resettabile PTC
PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 24VDC 100A 0.8W 0.2s 0.11Ohm SMD Solder Pad 1812 T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| 24VDC | |
| 100 | |
| 0.75 | |
| 1.5 | |
| 0.11 | |
| 0.29 | |
| 0.8 | |
| 0.2@8A | |
| Solder Pad | |
| 2 | |
| -40 | |
| 85 | |
| Tape and Reel | |
| 4.73 X 3.41 X 1.55 | |
| 4.73(Max) | |
| 3.41(Max) | |
| 1.55(Max) | |
| 0.033 | |
| 1812 | |
| Surface Mount |
In the event of overcurrent or short, your circuit can resume normal operation with this 1812L075/24DR positive temperature coefficient device from Littelfuse, without the need to replace any fuses. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73(Max) mm long, 1.55(Max) mm tall and 3.41(Max) mm deep.
