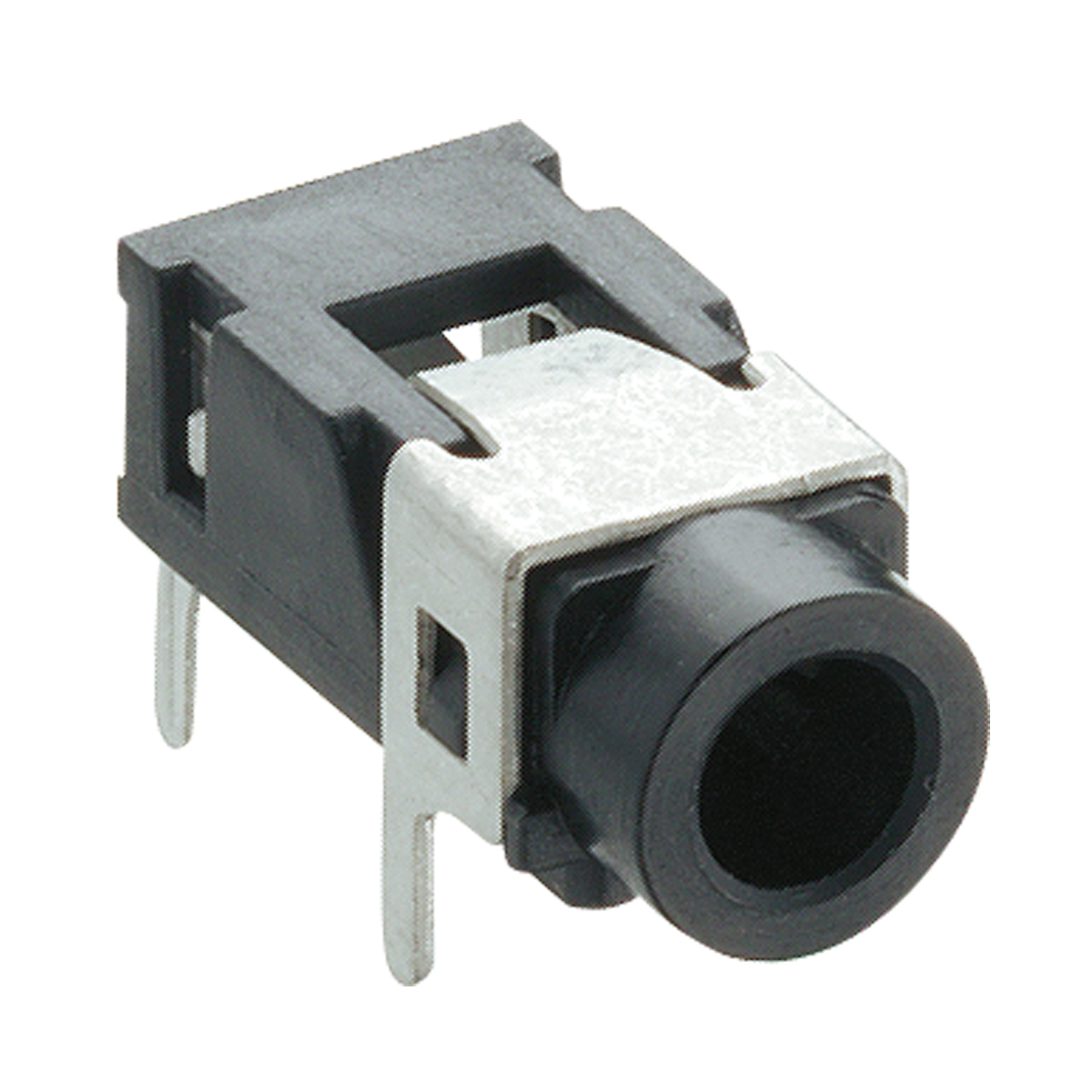

Lumberg1503 08Connettore audio e video
Conn 3.5MM Stereo Jack F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk
| Compliant | |
| EAR99 | |
| Obsolete | |
| Automotive | Unknown |
| PPAP | Unknown |
| 3.5MM Stereo Jack | |
| F | |
| 3 | |
| 3 | |
| 1 | |
| Solder | |
| Right Angle | |
| 1 | |
| 34VDC|34VAC | |
| 100 | |
| 50 | |
| -20 | |
| 70 | |
| 5000 | |
| Bulk | |
| 7 | |
| 14.5 | |
| 6.1 | |
| Through Hole | |
| Polybutylene Terephthalate | |
| Tin | |
| Copper Alloy |
The 3.5mm stereo jack 1503 08 audio and video connector from Lumberg allows you to operate video and sound in your design. This F connector's 3 contacts that are made out of copper alloy and plated with tin. It has a female type gender. It has a right angle body orientation. This connector has a single port. It has a maximum voltage rating of 34 VDC|34VAC. This device has a maximum current rating of 1 A. 1503 08 is housed in polybutylene terephthalate. This product comes packaged in bulk, so the parts will be stored loosely. This product is 7 mm long, 6.1 mm tall and 14.5 mm deep. Its 3 terminals use the solder termination method. This part has an operating temperature range of -20 °C to 70 °C.
