HARTING09140253001Connettore rettangolare
Conn Rectangular M 25 POS Crimp ST Cable Mount Han-Modular® Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.20 | |
| SVHC | Yes |
| Tasso di SVHC superiore ai limiti consentiti | Yes |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| PL | |
| 25 | |
| 3 | |
| Crimp | |
| Straight | |
| M | |
| 4 | |
| 50V | |
| 10000 | |
| -40 | |
| 125 | |
| 500 | |
| Yes | |
| Bag | |
| 0.094 | |
| 34.2 | |
| 34 | |
| 14.6 | |
| Han-Modular® | |
| Cable Mount |

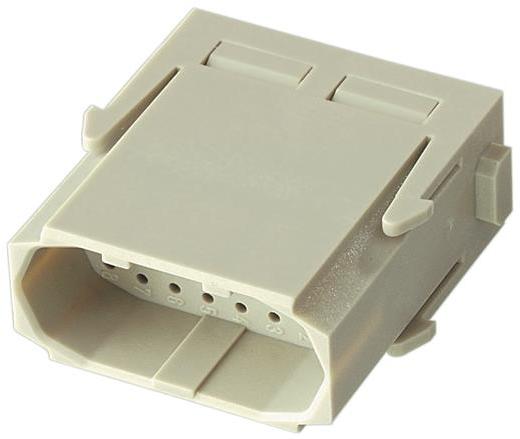

Harting's 09140253001 discrete wire housing provides a durable connection for discrete wires. This M connector has 25 M contacts. It has a straight body orientation. It has a maximum voltage rating of 50 V. This is a 3-row connector. It has a male type gender. This device has a maximum current rating of 5 A. This rectangle connector has an operating temperature of -40 to 125 °C. Its wire is 20-28 AWG. This product is 34.2 mm long, 14.6 mm tall and 34 mm deep. 09140253001 is housed in polycarbonate.
| EDA / CAD Models |
