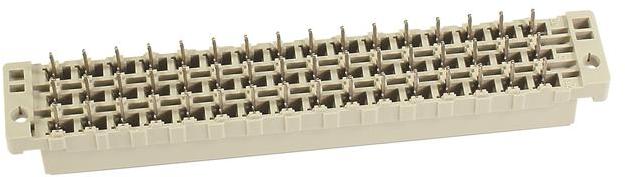

HARTING09052486831Backplane connettore
Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 48 | |
| Solder | |
| 5.08 | |
| Straight | |
| 6 | |
| 1000000 | |
| 15 | |
| -55 | |
| 125 | |
| 400 | |
| 16.68 | |
| 94.85 | |
| 15.45 | |
| 11.55 | |
| 4.5 | |
| Through Hole |
This din 41612 09052486831 backplane connector from Harting will not only link multiple connectors together but also provide an interface between the devices. This F connector has 48 contacts that are plated with gold over nickel. It has a straight body orientation. It has a female type gender. This is a 3-row connector. Its pitch is 5.08 mm. This device has a maximum current rating of 6 A. This product is 94.9 mm long, 11.6 mm tall and 15.5 mm deep. It uses the solder termination method.
| EDA / CAD Models |
