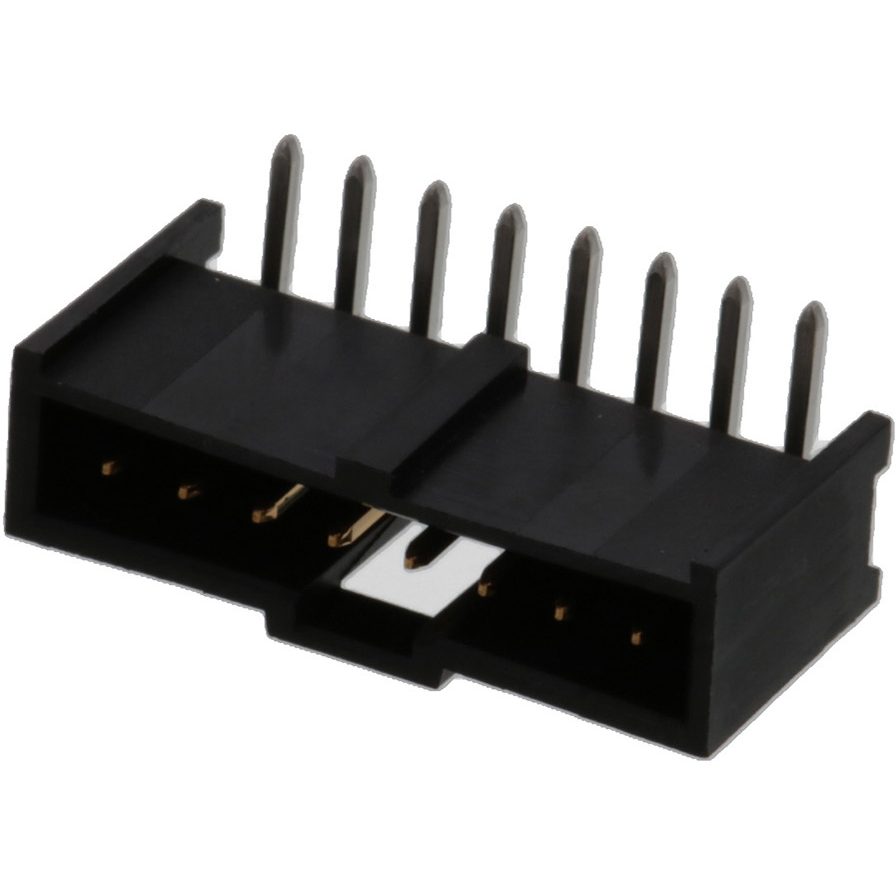

Molex0901362208Piastre connettori e prese PCB
Conn Shrouded Header (4 Sides) HDR 8 POS 2.54mm Solder RA Thru-Hole C-Grid III Tray
Other Part Names : 901362208
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Shrouded Header (4 Sides) | |
| HDR | |
| 8 | |
| 1 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| Center Key/Center Slot | |
| 3/Contact | |
| 350VDC|350VAC | |
| 5000 | |
| 20 | |
| -55 | |
| 125 | |
| Tray | |
| 1.339 | |
| 23.67 | |
| 7.21 | |
| 10.9 | |
| C-Grid III | |
| Through Hole |
Mounting this shrouded 0901362208 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This HDR connector's 8 contacts that are made out of brass and plated with gold. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 350 VDC|350VAC. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -55 to 125 °C. 0901362208 is housed in black polyester. This product is 23.67 mm long, 7.21 mm tall and 10.9 mm deep. It uses the solder termination method.
| EDA / CAD Models |
