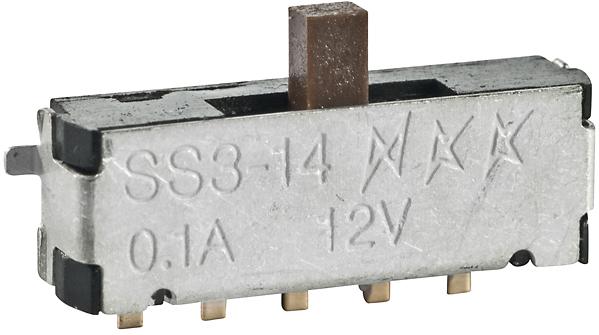

NKK SwitchesSS314MAH4Coulisse de commutateur
Switch Slide ON OFF ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 10000Cycles Gull Wing SMD Tray
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| Automotive | No |
| PPAP | No |
| Side Slide | |
| SPDT | |
| ON OFF ON | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 100 | |
| 50 | |
| 10000 | |
| 10000 | |
| 2 | |
| 1 | |
| Surface Mount | |
| Gull Wing | |
| 3 | |
| 1.4 | |
| 2 | |
| Polyphenylene Sulfide | |
| Phosphor Bronze | |
| Right Angle | |
| -25 | |
| 85 | |
| Tray | |
| Ultra-Miniature | |
| 12.5 | |
| 4.2 | |
| 2.9 | |
| 13.8 | |
| 7.6 | |
| 3.05 |
Turn your circuit on and off using this SS314MAH4 slide switch from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This slide switch has an operating temperature range of -25 °C to 85 °C. The SS314MAH4 slide switch has a gull wing termination style. The item will be shipped in tray orientation. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 13.8 mm long, 3.05 mm tall and 7.6 mm deep.
