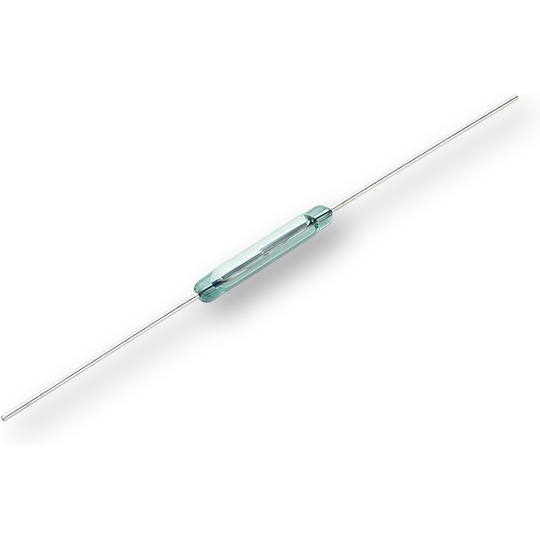

LittelfuseMLRR-3-17-23Commutateur à lames souples
Switch Reed N.O. 1A 140VAC 200VDC 20VA 0.7ms 100mOhm
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Form A | |
| N.O. | |
| 1 | |
| 1.2 | |
| 20 | |
| 17 to 23 | |
| 250VDC | |
| 0.7 | |
| 0.2 | |
| 10000 | |
| 100 | |
| Through Hole | |
| Axial | |
| Contacts | |
| Hermetic | |
| -40 | |
| 125 | |
| 15.24 | |
| 2.66 | |
| 56.64 |
This MLRR-3-17-23 reed switch from Littelfuse is normally closed but when introduced to a magnetic field this switch will open. This device has a maximum current rating of 1. This reed switch has a minimum operating temperature of -40 °C and a maximum of 125 °C. The MLRR-3-17-23 reed switch has an axial termination style. This product is 56.64 mm long with a diameter of 2.66 mm. The maximum DC voltage rating is 200 VDC.
