Digilent410-237Kits et outils de développement

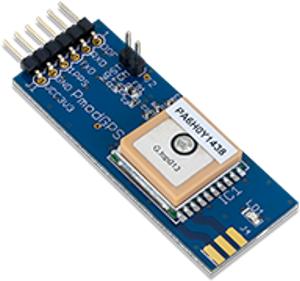

The Pmod GPS provides satellite-positioning accuracy to any embedded system. By communicating through UART with the GlobalTop FGPMMOPA6H GPS module, users may benefit from the 3-meter accuracy for any long-term traveling.

Note:Due to an end-of-life notice on the Gms-u1LP antenna module, the Pmod GPS will be using the FGPMMOPA6H module.

Features:

       - Ultra-sensitive GPS module (-165 dBm)

       - Add 3m 2D satellite positioning accuracy to any embedded system

       - Low power consumption

       - Up to 10Hz update rate

       - NMEA (default) and RTCM protocols available

       - Small PCB size for flexible designs 2.0 in × 0.8 in (5.0 cm × 2.0 cm)

       - 6-pin Pmod connector with UART interface

       - Custom antistatic Pmod packaging included
