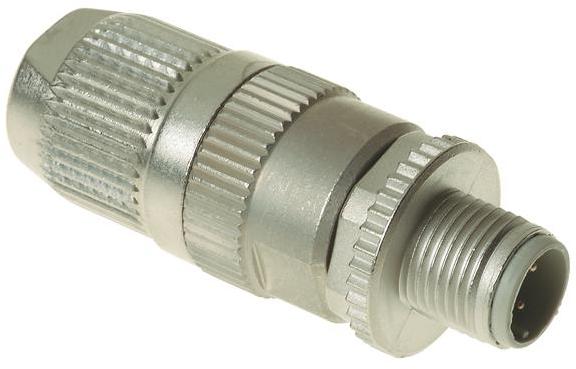

HARTING21032821405Connecteur circulaire
Conn Circular PIN 4 POS Solder ST Cable Mount 4 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.20 | |
| SVHC | Yes |
| Taux de SVHC dépassant le seuil autorisé | Yes |
| Automotive | No |
| PPAP | No |
| Circular | |
| PL | |
| Cable Mount | |
| Straight | |
| 1 | |
| 4 | |
| 4 | |
| PIN | |
| Solder | |
| 18-22 | |
| No | |
| Brass | |
| Gold Over Nickel | |
| Zinc Die Cast | |
| 4 | |
| 50V | |
| -40 | |
| 85 | |
| IP65/IP67 | |
| 100 | |
| 10 | |
| Threaded | |
| 100 | |
| 19.5 | |
| 52 |
Make a solid connection with this 21032821405 connector from Harting. This male connector has 4 male contacts. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 4 A. This product is 52 mm long with a diameter of 19.5 mm. It uses the solder termination method. This circular connector has an operating temperature of -25 to 85 °C.
| EDA / CAD Models |
