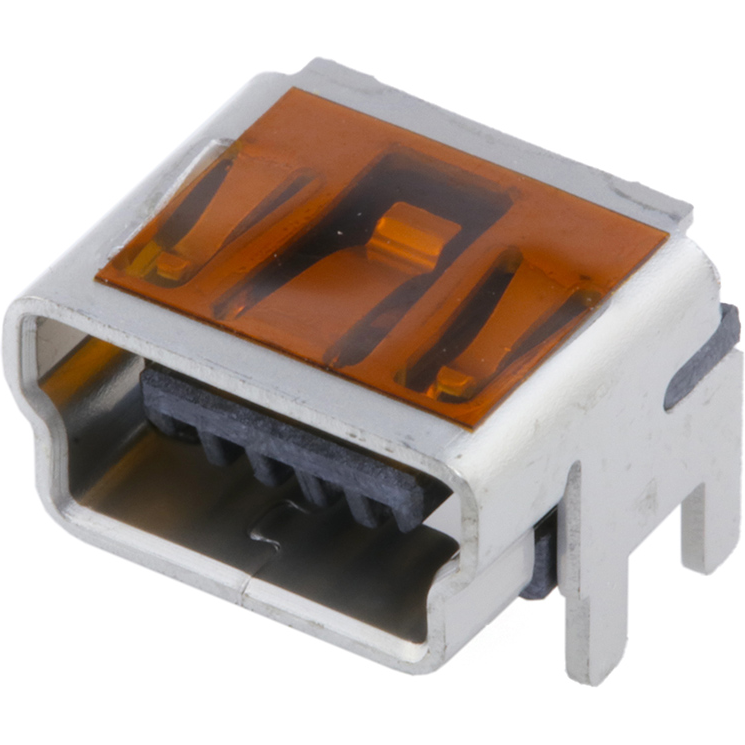

Molex0513870578Connector USB
Conn Mini USB 2.0 Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port USB OTG T/R
Other Part Names : 513870578
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Mini USB 2.0 Type B | |
| RCP | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| 0.8 | |
| Right Angle | |
| 1/Contact | |
| 30VDC|30VAC | |
| 100 | |
| 50 | |
| 5000 | |
| Copper Alloy | |
| Tin Over Nickel | |
| 0 | |
| 50 | |
| Tape and Reel | |
| 0.443 | |
| 7.7 | |
| 6.7 | |
| USB OTG | |
| 4.4 | |
| Surface Mount |
Run your audio and video effectively with the mini USB type b 0513870578 audio and video connector from Molex. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VDC|30VAC. It has a receptacle type gender. Its pitch is 0.8 mm. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. 0513870578 is housed in plastic. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 7.7 mm long, 4.4 mm tall and 6.7 mm deep. This part has a minimum operating temperature of 0 °C and a maximum of 50 °C. Its 5 terminals use the solder termination method.
| EDA / CAD Models |
