This single-channel high-side driver is manufactured using ST proprietary VIPower® M0-7 technology, belongs to VIPowerZero Low Ohmic High-Sde-Drivers family and has current capability up to 30A thanks to very low 1.3mOhm RDSon.

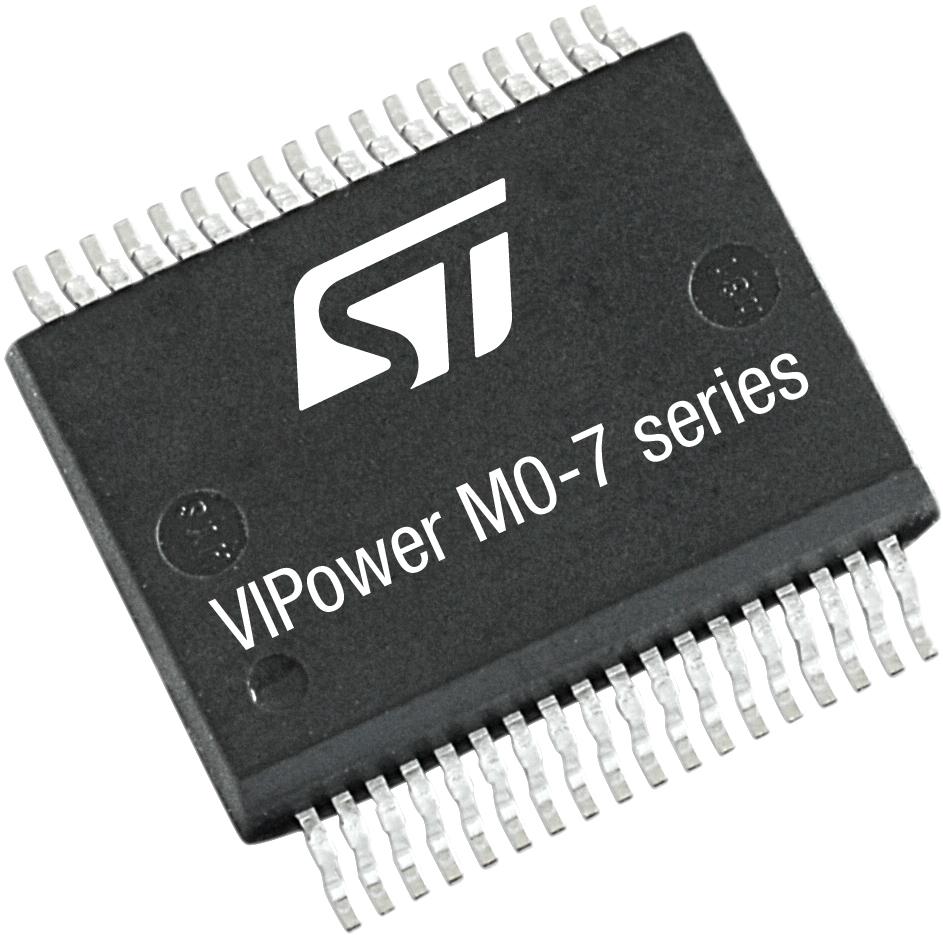

Housed in a small and thermally efficient PowerSSO-36 package, this device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics thanks to ST-only Power Limitation and Multisense analog feedback.



Features

General

– Single-channel smart high-side driver

– Very low standby current

– Compatible with 3 V and 5 V CMOS outputs



MultiSense diagnostic functions

– Multiplexed analog feedback of: load current, VCC supply voltage and TCHIP device temperature

– Overload and short to ground indication

– Thermal shutdown indication

– OFF-state open-load detection

– Output short to VCC detection

– Sense enable/disable



Protections

– Undervoltage shutdown

– Overvoltage clamp

– Load current limitation

– Latch-off on over-temperature (ΔTJ_SD or TSD)

– Loss of ground and loss of VCC

– Reverse battery with self switch of the PowerMOS

– Electrostatic discharge protection
