Typical Application for LTC2376-16, 16-Bit, 250-ksps, Low Power SAR ADC
Reference Design using part LTC2376CMS-16 by Analog Devices
1 / 1
For End Products
- Battery Powered Instrument
- Data Acquisition System
- Medical Imaging
- Portable Instrumentation
- Process Control
Description

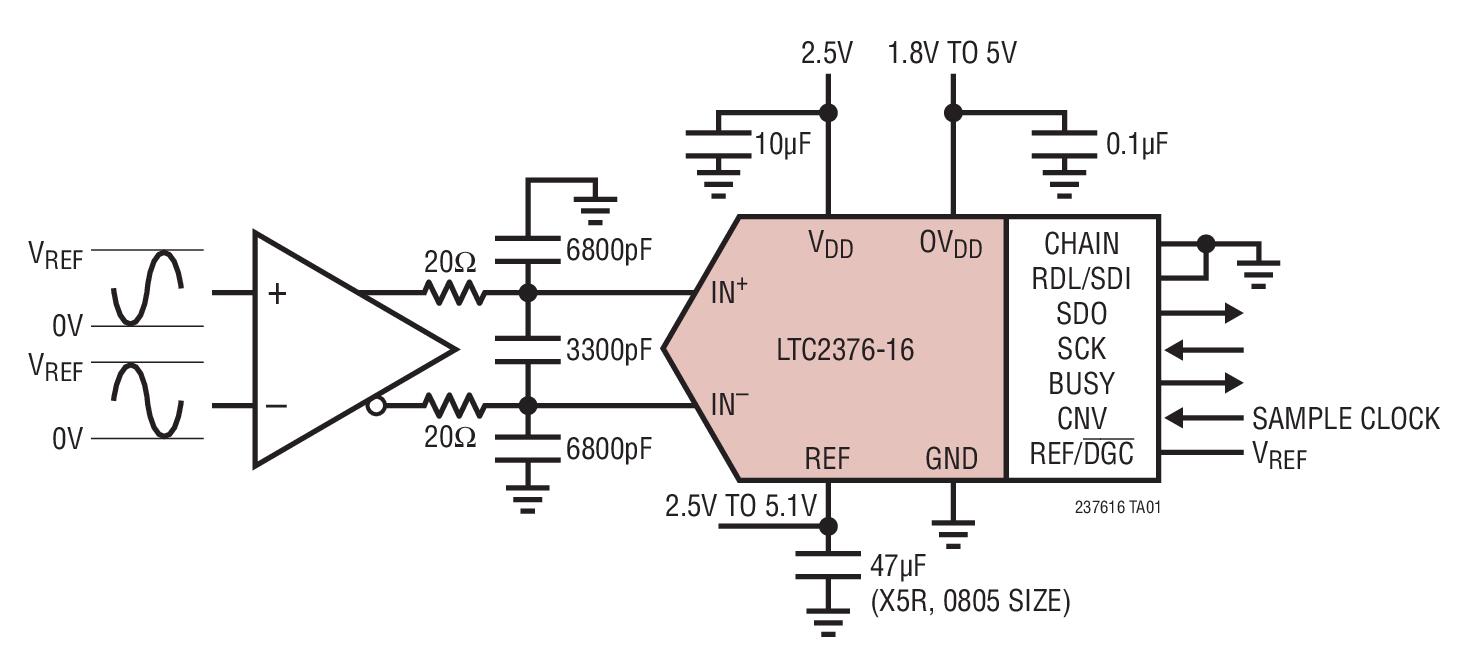

- Typical Application for LTC2376-16, 16-Bit, 250-ksps, Low Power SAR ADC with 97dB SNR. The LTC2376-16 is a low noise, low power, high speed 16-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2376-16 has a VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2376-16 consumes only 3.4mW and achieves 0.5LSB INL maximum, no missing codes at 16 bits with 97dB SNR
Key Features
-
ADC Resolution16 Bit
-
ADC Sampling Rate250K SPS
