Typical Application for LTC2326-16, 16-Bit, 250-ksps, 10.24V True Bipolar, Pseudo-Differential Input ADC with 93.5dB SNR
Reference Design using part LTC2326-16 by Analog Devices
1 / 1
For End Products
- Data Acquisition System
- Industrial Programmable Logic Controllers (PLCs)
- Portable Instrumentation
- Process Control
Description

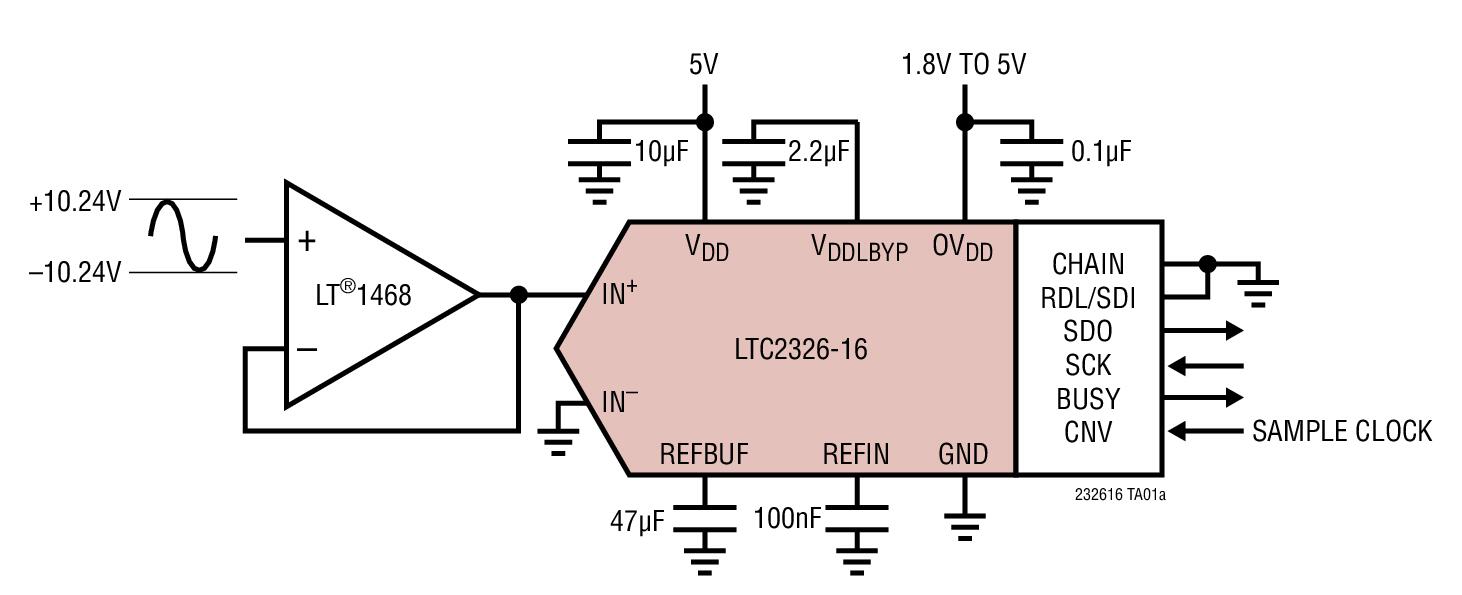

- Typical Application for LTC2326-16, 16-Bit, 250-ksps, 10.24V True Bipolar, Pseudo-Differential Input ADC. The LTC2326-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC with pseudo differential inputs. Operating from a single 5V supply, the LTC2326-16 has a 10.24V true bipolar input range, making it ideal for high voltage applications which require a wide dynamic range
Key Features
-
ADC Resolution16 Bit
-
ADC Sampling Rate250K SPS
