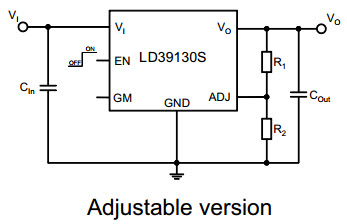

Typical Application for LD39130S 300mA very low quiescent current adjustable linear regulator IC with the automatic green mode

Reference Design using part LD39130S by STMicroelectronics

Enlarge
Image 1 / 1

Manufacturer

STMicroelectronics
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Battery Powered Systems
  • Cordless Phone
  • Digital Still Camera (DSC)
  • Mobile Phone
  • Portable Media Player

Description

  • Typical Application for LD39130S 300mA very low quiescent current adjustable linear regulator IC with the automatic green mode. The LD39130S is a high accuracy voltage regulator that provides 300 mA maximum current from an input voltage ranging from 1.4 V to 5.5 V, with a typical dropout voltage of 300 mV

Key Features

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (11)

Featured Parts
Part Number Manufacturer Type Description
LD39130SPU25R STMicroelectronics Linear Regulators LDO Regulator Pos 2.5V 0.3A 6-Pin DFN T/R Buy
LD39130SJ30R STMicroelectronics Linear Regulators LDO Regulator Pos 3V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SPUR STMicroelectronics Linear Regulators LDO Regulator Pos 0.3A 6-Pin DFN T/R Buy
LD39130SJ12R STMicroelectronics Linear Regulators LDO Regulator Pos 1.2V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SJ29R STMicroelectronics Linear Regulators LDO Regulator Pos 2.9V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SPU31R STMicroelectronics Linear Regulators LDO Regulator Pos 3.1V 0.3A 6-Pin DFN T/R Buy
LD39130SJ10R STMicroelectronics Linear Regulators LDO Regulator Pos 1V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SJ41R STMicroelectronics Linear Regulators LDO Regulator Pos 4.1V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SJ18R STMicroelectronics Linear Regulators LDO Regulator Pos 1.8V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SJ25R STMicroelectronics Linear Regulators LDO Regulator Pos 2.5V 0.3A 4-Pin Flip-Chip T/R Buy
LD39130SJ33R STMicroelectronics Linear Regulators LDO Regulator Pos 3.3V 0.3A 4-Pin Flip-Chip T/R Buy
