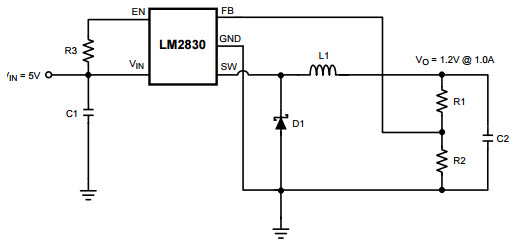

Typical Application Design for LM2830Z 3MHz, Vin = 5V, Vo = 1.2 V at 1A Step-Down DC-DC Regulator

Reference Design using part LM2830Z by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Power Supplies

Description

  • Typical Application Design for LM2830Z 3MHz, Vin = 5V, Vo = 1.2 V at 1A Step-Down DC-DC Regulator

Key Features

  • Conversion Type
    DC to DC
  • Topology
    Buck
