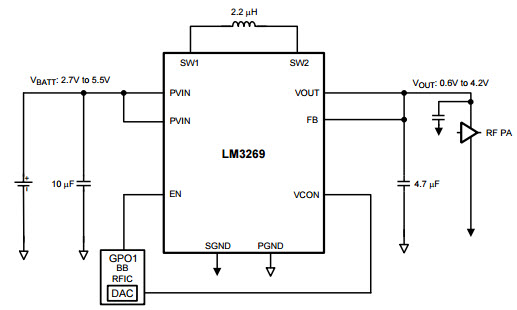

Typical Application Circuit for LM3269 Seamless-Transition Buck-Boost Converter for 3G and 4G RF Power Amplifiers

Reference Design using part LM3269 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Power Supplies

Description

  • Typical Application Circuit for LM3269 Seamless-Transition Buck-Boost Converter for 3G and 4G RF Power Amplifiers

Key Features

  • Conversion Type
    DC to DC
  • Topology
    Buck Boost

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
LM3269TLE/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.7V to 5.5V Step Down/Step Up Single-Out 0.6V to 4.2V 0.75A 12-Pin DSBGA T/R Buy
LM3269TLE/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.7V to 5.5V Step Down/Step Up Single-Out 0.6V to 4.2V 0.75A 12-Pin DSBGA T/R Buy
LM3269TLX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.7V to 5.5V Step Down/Step Up Single-Out 0.6V to 4.2V 0.75A 12-Pin DSBGA T/R Buy
LM3269TLX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.7V to 5.5V Step Down/Step Up Single-Out 0.6V to 4.2V 0.75A 12-Pin DSBGA T/R Buy
