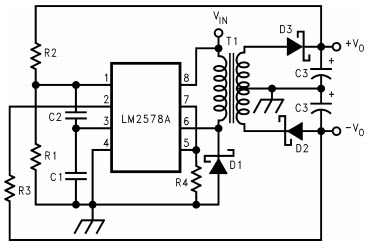

Typical Application Circuit for LM2578A RS-232 Line Driver Power Supply

Reference Design using part LM2578AM/NOPB by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Flashlight
  • Motor Control
  • Power Supplies

Description

  • Typical Application Circuit for LM2578A RS-232 Line Driver Power Supply. The LM2578A is a switching regulator which can easily be set up for such DC to DC voltage conversion circuits as the buck, boost and inverting configurations

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    5 V
  • Output Voltage
    12 V
  • Output Current
    0.04 A

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
LM2578AN/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2V to 40V Inv/Step Down Single-Out 1V to 36V 0.75A 8-Pin PDIP Tube Buy
LM2578AN/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2V to 40V Inv/Step Down Single-Out 1V to 36V 0.75A 8-Pin PDIP Tube Buy
LM2578AM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2V to 40V Inv/Step Down Single-Out 1V to 36V 0.75A 8-Pin SOIC Tube Buy
LM2578AM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2V to 40V Inv/Step Down Single-Out 1V to 36V 0.75A 8-Pin SOIC Tube Buy
