SLVA299, DC to DC Single Output Power Supply for ADSL Modem

Reference Design using part TPS61170DRV by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • ADSL Modem

Description

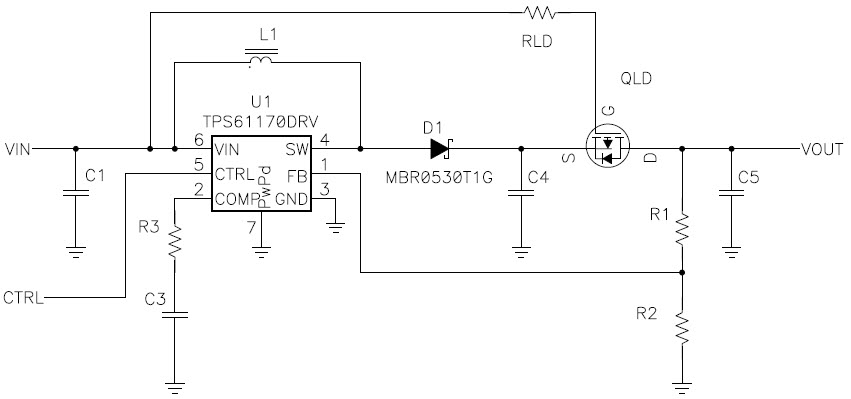

  • SLVA299, DC to DC Single Output Power Supply for ADSL Modem. TPS61170 Boost Converter With Input to Output Isolation

Key Features

  • Conversion Type
    DC to DC
  • Topology
    Boost

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
TPS61170DRVRG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 0.3A 6-Pin WSON EP T/R Buy
TPS61170DRVT-911365501 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
TPS61170DRVT-P Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
TPS61170DRVTG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 0.3A 6-Pin WSON EP T/R Buy
TPS61170DRVR-P Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
TPS61170DRVR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
TPS61170DRVT Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
TPS61170DRVR-S Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 3V to 18V Step Up Single-Out 3V to 38V 6-Pin WSON EP T/R Buy
