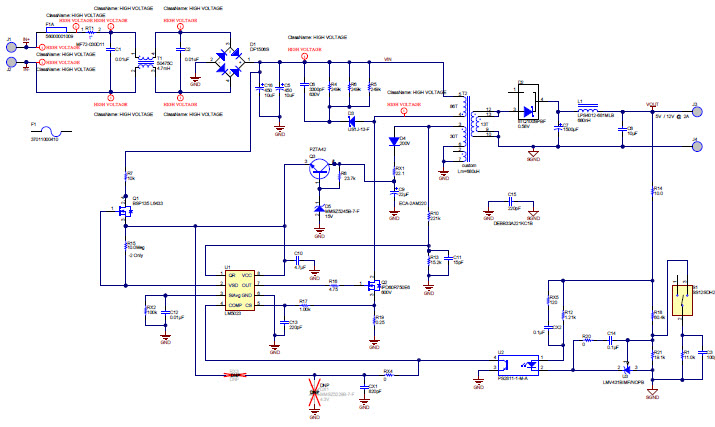

PMP7883.2, AC Offline Converter Providing 5VDC or 12VDC Output at 2A

Reference Design using part LM5023 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    AC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Consumer Electronics
  • Industrial

Description

  • PMP7883.2, AC Offline Converter Providing 5VDC or 12VDC Output at 2A. PMP7883.2 Reference design, driven by the LM5023, takes an AC input, like the ones located in the common US power outlet, and generates a 5V/12V out, 2A DC signal, an output commonly used for USB connections

Key Features

  • Conversion Type
    AC to DC
  • Input Voltage
    85 to 265 (AC) V
  • Output Voltage
    5 V
  • Output Current
    2 A
  • Output Power
    10 W
  • Topology
    Flyback- Non Sync

Featured Parts (7)

Featured Parts
Part Number Manufacturer Type Description
LMV431BIMF/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R Buy
LMV431BIMF/NOPB Texas Instruments Voltage References V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R Buy
PS2811-1-M-A Renesas Electronics Transistor and Photovoltaic Output Photocouplers Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R Buy
LM5023MMX-2/NOPB Texas Instruments PWM and Resonant Controllers Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R Buy
LM5023MMX-2/NOPB Texas Instruments PWM and Resonant Controllers Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R Buy
LM5023MM-2/NOPB Texas Instruments PWM and Resonant Controllers Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R Buy
LM5023MM-2/NOPB Texas Instruments PWM and Resonant Controllers Current Mode PWM Controller 700mA 130kHz 8-Pin VSSOP T/R Buy
