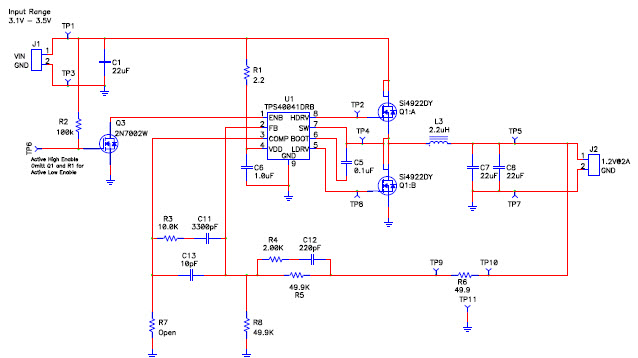

PMP3247.2, Sync Bucks, Linear for Single-board Computer (SBC) Power (1.2V @ 2A)

Reference Design using part TPS40040DRB by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Computers and Peripherals

Description

  • PMP3247.2, Sync Bucks, Linear for Single-board Computer (SBC) Power (1.2V @ 2A). The PMP3247 is a multiple output design using three TPS40041 devices to generate 2.5V, 1.8V and 1.2V. The input voltage is 3.3V and the device operates at 600KHz to offer very small size

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    3.1 to 3.5 V
  • Output Voltage
    1.2 V
  • Output Current
    2 A
  • Output Power
    2.4 W
  • Topology
    Buck

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
TPS40040DRBR Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R Buy
TPS40040DRBT Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R Buy
TPS40040DRBTG4 Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R Buy
