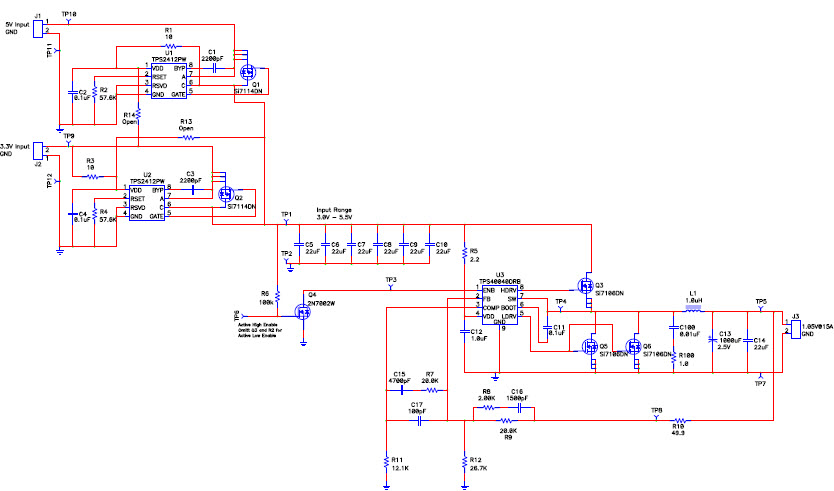

PMP3116, Sync Buck for Printer 1.05V@15A
Reference Design using part TPS2412PW by Texas Instruments
1 / 1
Associated Documents
For End Products
- Computers and Peripherals
Description
- PMP3116, Sync Buck for Printer 1.05V@15A. Sync Buck for Printer 1.05V@15A
Key Features
-
Conversion TypeDC to DC
-
Input Voltage3 to 5.5 V
-
Output Voltage1.05 V
-
Output Current15 A
-
Output Power15.75 W
-
TopologyBuck
Featured Parts (6)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS40040DRBR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R | Buy | |
|
|
TPS40040DRBTG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R | Buy | |
|
|
TPS40040DRBT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 350kHz 8-Pin VSON EP T/R | Buy | |
|
TPS2412PWRG4 | Texas Instruments | OR Controllers | OR Controller N-Channel Single 8-Pin TSSOP T/R | Buy | |
|
|
TPS2412PWR | Texas Instruments | OR Controllers | OR Controller N-Channel Single 8-Pin TSSOP T/R | Buy | |
|
|
TPS2412PW | Texas Instruments | OR Controllers | OR Controller N-Channel Single 8-Pin TSSOP Tube | Buy | |
