PMP2831.2, Buck (1.8V @ 2A)

Reference Design using part TPS40200D by Texas Instruments

Enlarge

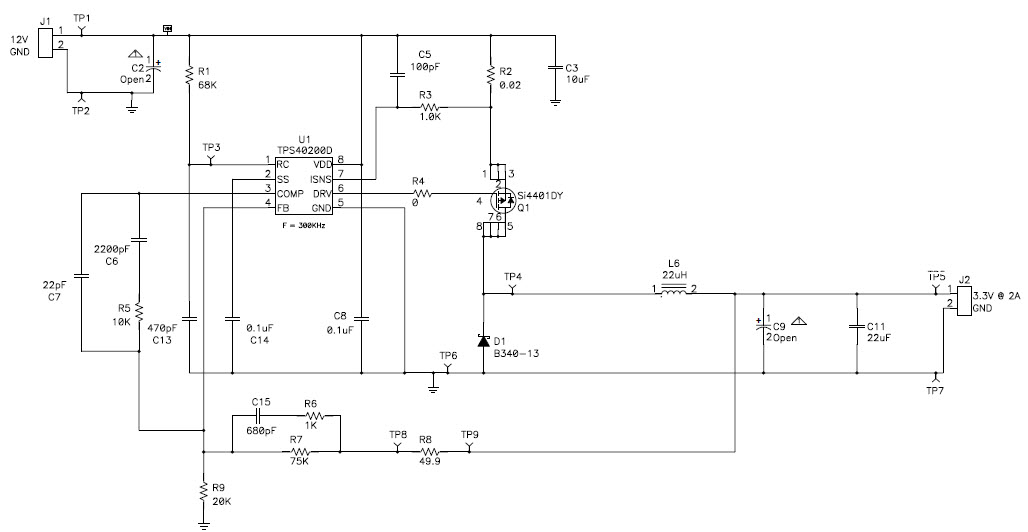

TPS40200 2x (Sheet 1 of 2)

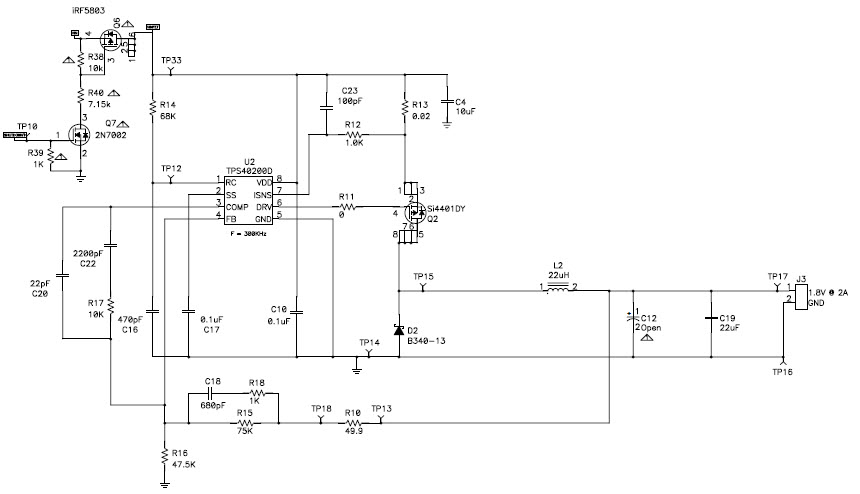

TPS40200 2x (Sheet 2 of 2)
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Industrial

Description

  • PMP2831.2, Buck (1.8V @ 2A). Buck (1.8V @ 2A)

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    4.5 to 20 V
  • Output Voltage
    1.8 V
  • Output Current
    2 A
  • Output Power
    3.6 W
  • Topology
    Buck

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
TPS40200DG4 Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC Tube Buy
TPS40200DRG4 Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC T/R Buy
TPS40200DRBT Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin VSON EP T/R Buy
TPS40200D Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC Tube Buy
TPS40200DR Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC T/R Buy
TPS40200DRBR Texas Instruments DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin VSON EP T/R Buy
