LM5008AEVAL, Evaluation Board for the 5V DC to DC Single Output Power Supply for Communications/Telecom

Reference Design using part LM5008AMM by Texas Instruments

Enlarge

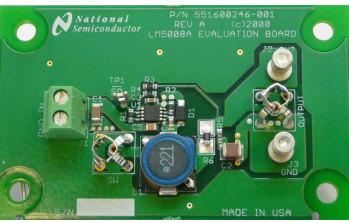

LM5008AEVAL Image

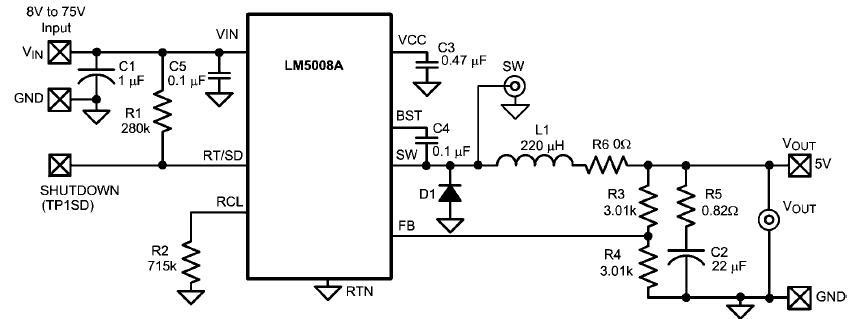

LM5008AEVAL Schematic
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Communications and Telecom

Description

  • LM5008AEVAL, Evaluation Board for the 5V DC to DC Single Output Power Supply for Communications/Telecom. The Fully Functional Regulator Employing Constant On-Time Operating Principle 5V

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    8 to 75 V
  • Output Voltage
    5 V
  • Output Current
    0.3 A
  • Efficiency
    92.4 %
  • Topology
    Buck

Featured Parts (5)

Featured Parts
Part Number Manufacturer Type Description
LM5008AMMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 95V Inv/Step Down Single-Out 2.5V to 75V 0.35A 8-Pin VSSOP T/R Buy
LM5008AMM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 95V Inv/Step Down Single-Out 2.5V to 75V 0.35A 8-Pin VSSOP T/R Buy
LM5008AMM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 95V Inv/Step Down Single-Out 2.5V to 75V 0.35A 8-Pin VSSOP T/R Buy
LM5008AMMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 95V Inv/Step Down Single-Out 2.5V to 75V 0.35A 8-Pin VSSOP T/R Buy
LM5008AMM Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 95V Inv/Step Down Single-Out 2.5V to 75V 0.35A 8-Pin VSSOP T/R Buy
