LM3668SD-2833EV/NOPB, Evaluation Board using LM3668 high efficiency synchronous buck-boost DC-DC converter

Reference Design using part LM3668SD-2833/NOPB by Texas Instruments

Enlarge

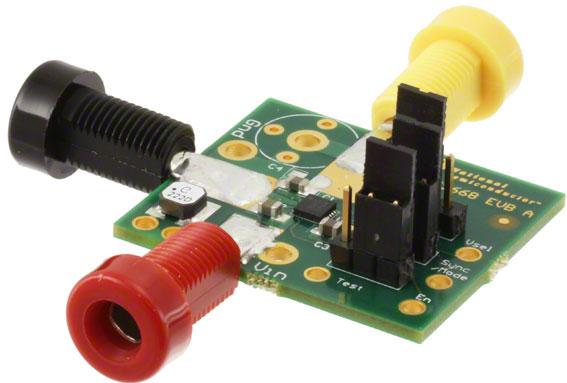

LM3668SD-2833EV/NOPB Image
LM3668SD-2833EV/NOPB Schematic
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Handsets
  • Hard Disk Drive (HDD)
  • MP3 Player
  • Personal Digital Assistant
  • Portable
  • Wireless Modem

Description

  • LM3668SD-2833EV/NOPB, Evaluation Board using LM3668 a synchronous buck-boost DC-DC converter optimized for powering low voltage circuits from a Li-Ion battery and input voltage rails between 2.5V and 5.5V. It has the capability to support up to 1A output current over the output voltage range. The LM3668 regulates the output voltage over the complete input voltage range by automatically switching between buck or boost modes depending on the input voltage

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.5 to 5.5 V
  • Output Voltage
    2.8|3.3 V
  • Output Current
    1 A
  • Topology
    Buck Boost

Featured Parts (2)

Featured Parts
Part Number Manufacturer Type Description
LM3668SD-2833/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 2.8V/3.3V 1A 12-Pin WSON EP T/R Buy
LM3668SD-2833/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.5V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 2.8V/3.3V 1A 12-Pin WSON EP T/R Buy
