DC to DC Single Output Power Supply for Portable

Reference Design using part LM2623 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Digital Camera
  • Portable

Description

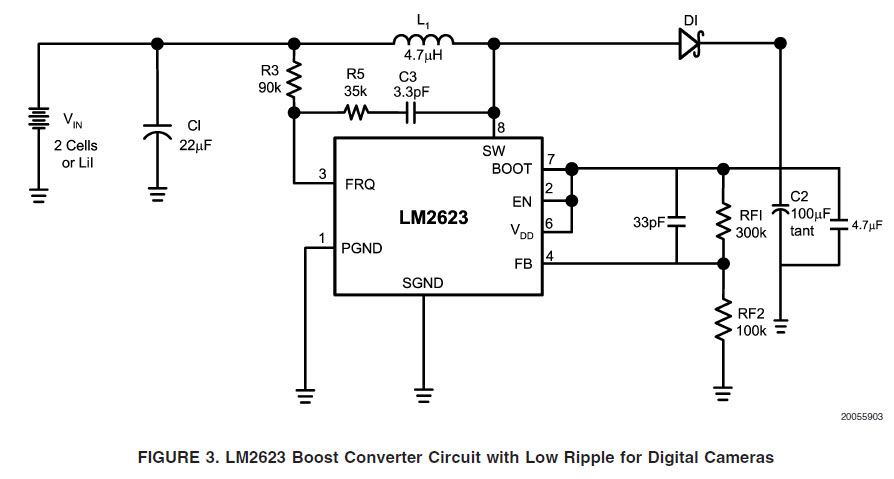

  • LM2623 Boost Converter Circuit with Low Ripple for Digital Cameras. It runs between 80% and 90% efficient with ripple below 30 millivolts at 300 ma

Key Features

  • Conversion Type
    DC to DC
  • Efficiency
    90 %
  • Topology
    Boost

Featured Parts (14)

Featured Parts
Part Number Manufacturer Type Description
LM2623MM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
LM2623MMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
LM2623ALD/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623LD/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623LDX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623MMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
LM2623ALD/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623LD/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623AMM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
LM2623AMM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
LM2623LDX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 14-Pin WSON EP T/R Buy
LM2623AMMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.8V to 14V Step Up Single-Out 1.24V to 14V 2A 8-Pin VSSOP T/R Buy
Load More
