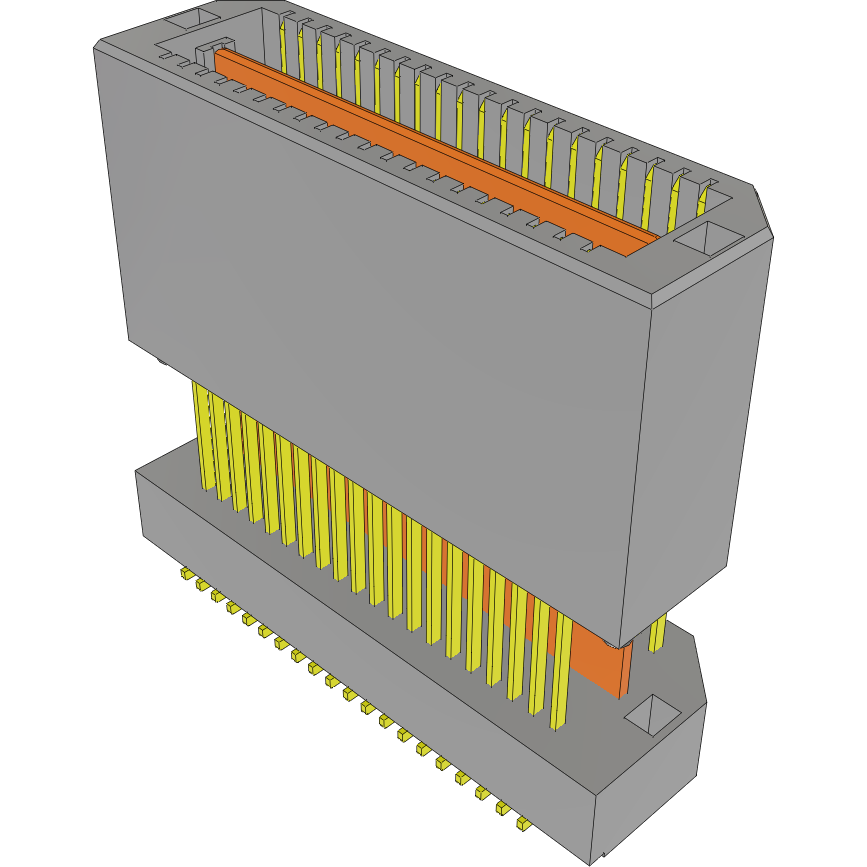

SamtecQTE-020-05-L-D连接器插头及 PCB 插座

Reduce safety concerns with this high speed micro plane QTE-020-05-L-D header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector's 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 225 VAC. This is a 2-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 0.8 mm. This device has a maximum current rating of (2/23) A/contact. This product is 20 mm long, 18.26 mm tall and 7.11 mm deep. QTE-020-05-L-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
