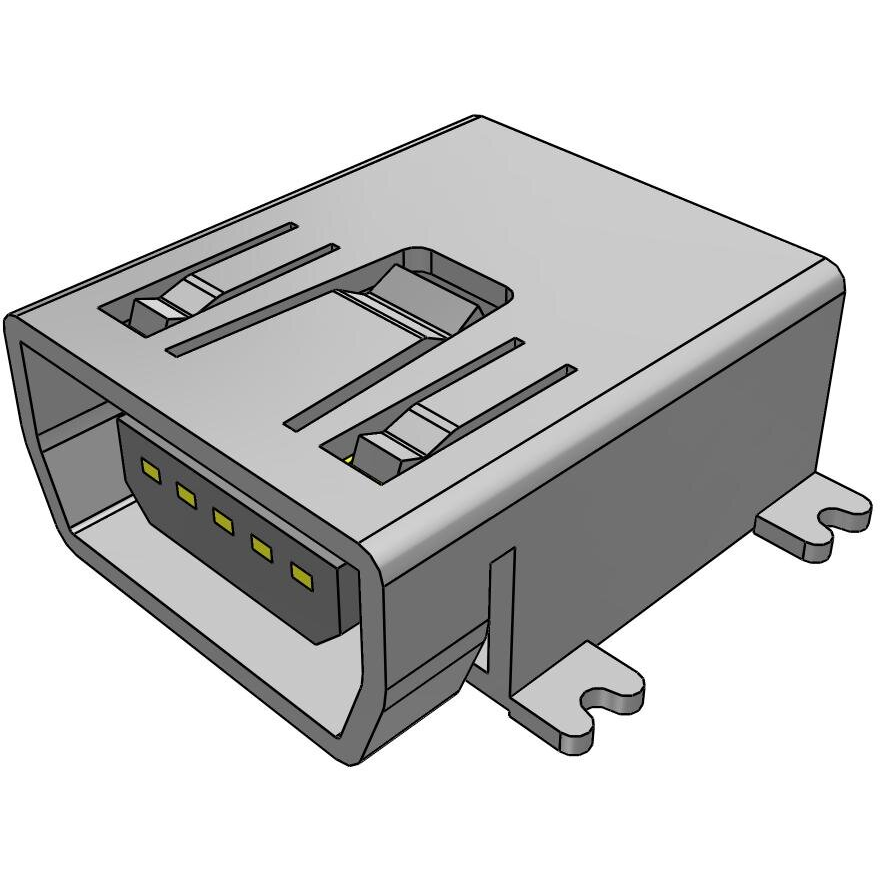

SamtecMUSB-05-S-AB-SM-AConnector USB

Make a secure connection for your applications' sound with the mini USB 2.0 type ab MUSB-05-S-AB-SM-A audio and video connector from Samtec. This F connector's 5 contacts that are made out of phosphor bronze and plated with gold. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 30 VAC. This connector has a single port. Its pitch is 0.8 mm. This device has a maximum current rating of 1 A/contact. MUSB-05-S-AB-SM-A is housed in thermoplastic. The component will be shipped in tray format. This product is 9.9 mm long, 4 mm tall and 9.2 mm deep. Its 5 terminals use the solder termination method. This part has an operating temperature range of -50 °C to 85 °C.
