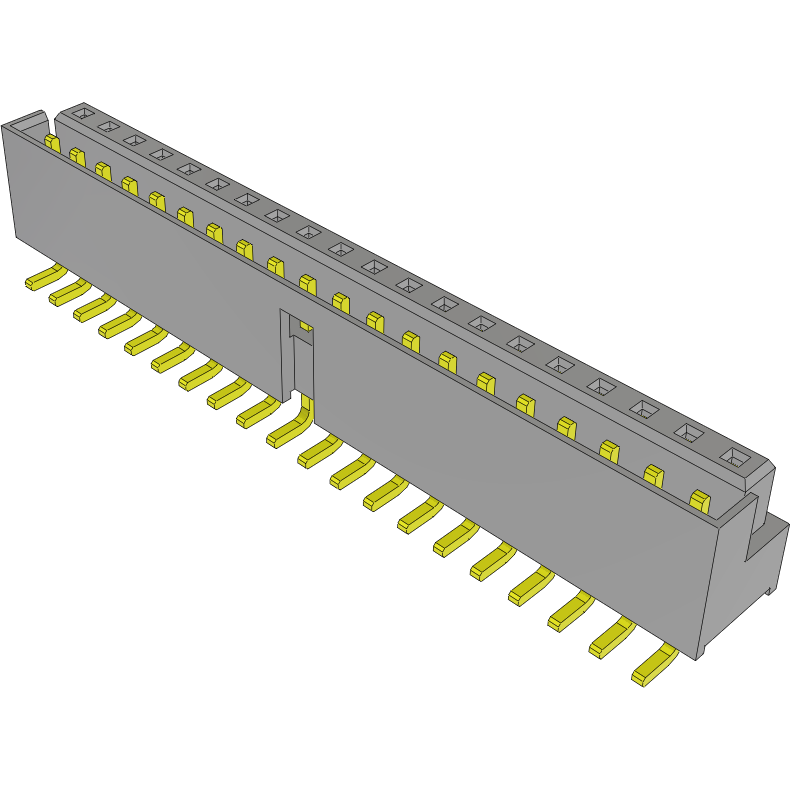

SamtecLS2-120-02-F-D连接器插头及 PCB 插座

This socket and terminal strip LS2-120-02-F-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT/HDR connector's 40 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. This is a 2-row connector. It has a maximum voltage rating of 475 VAC. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. LS2-120-02-F-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 41.57 mm long, 8.38 mm tall and 6.83 mm deep.
