Google LLCG840-00180-01 | Coral Camera传感器开发电路板和套件

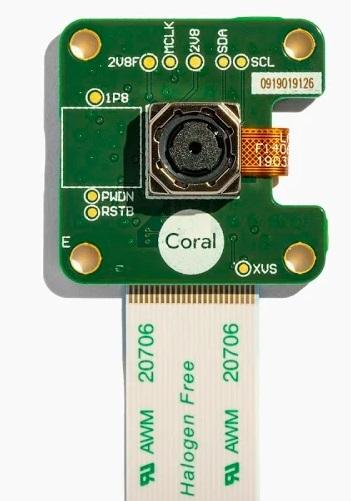

The Coral Camera is a 5MP camera designed for use with the Coral Dev Board, providing input for computer vision use cases.  The camera attaches to the Coral Dev Board’s MIPI CSI interface with a with a 24-pin FFC.

Our Dev Board features Google’s Edge TPU chip for fast ML inferencing on device.

Coral by Google is a platform for building devices with local AI.

Features

- ISP function: Automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz lumination, automatic blacklevel calibration (ABLC).

- Image quality control: color saturation, hue, gamma, sharpness, lens correction, defective pixel canceling, and noise canceling.

- Support autofocus control (AFC) with embedded AF VCM Driver.

For more information about the sensor, read about the Omnivision SOC.

Specs

- 5-megapixel OmniVision sensor: 1.4um x 1.4um pixel, Active array size 2582x1933

- Optical size: ¼”

- Field of view: 84.0° / 87.6°

- F-number: F=2.2 ±5%

- TV distortion: <1.5%

- Focal length: 2.5mm

- Focusing range: 10cm ~ ∞

- Dual lane MIPI output interface

- Board dimensions: 25 x 25 mm
