Honeywell12TS15-1Switch Toggle
Switch Toggle ON OFF ON DPDT Round Lever Screw 20A 277VAC 559.27VA Panel Mount with Threads
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| Round Lever | |
| DPDT | |
| ON OFF ON | |
| Threaded | |
| 20@125VAC | |
| 559.27@(CSA/UL) | |
| 16.51 | |
| Panel Mount with Threads | |
| Screw | |
| 6 | |
| Actuator/Panel | |
| Actuator/Panel | |
| Straight | |
| -54 | |
| 71 | |
| 15/32-32 | |
| 33.27 | |
| 11.94 | |
| 19.05 | |
| 45.36 | |
| 33.27 | |
| 19.05 | |
| 56.9 |

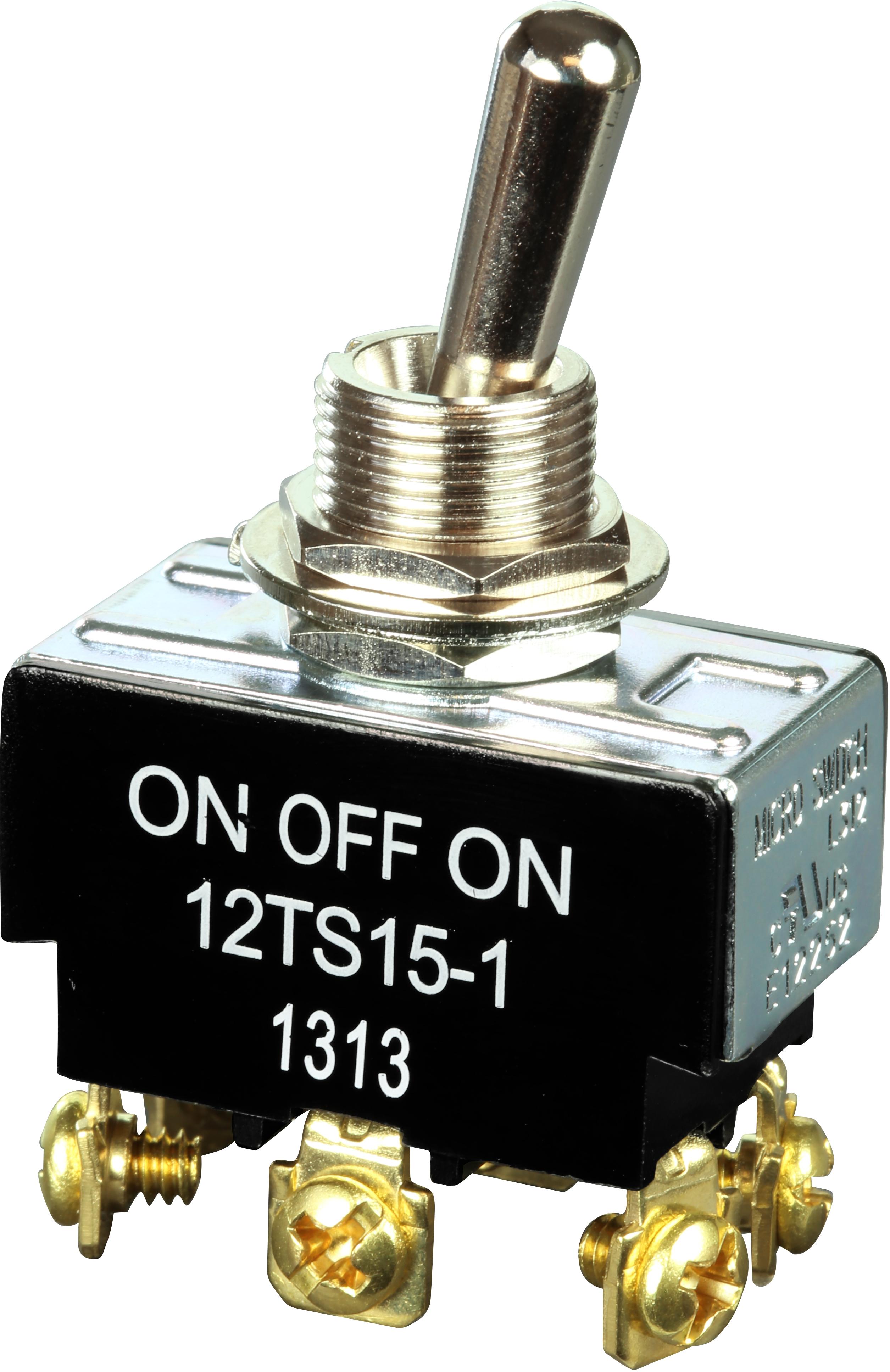

This compact general purpose 12TS15-1 toggle switch from Honeywell makes it possible to turn on and off certain parts of your circuits. This device has a maximum current rating of 20 A @ 125VAC. It has a DPDT configuration. This toggle switch has an operating temperature range of -54 °C to 71 °C. The 12TS15-1 toggle switch has a screw termination style. This product is 33.27 mm long, 56.9 mm tall and 19.05 mm deep. The maximum AC voltage rating is 277 VAC.
