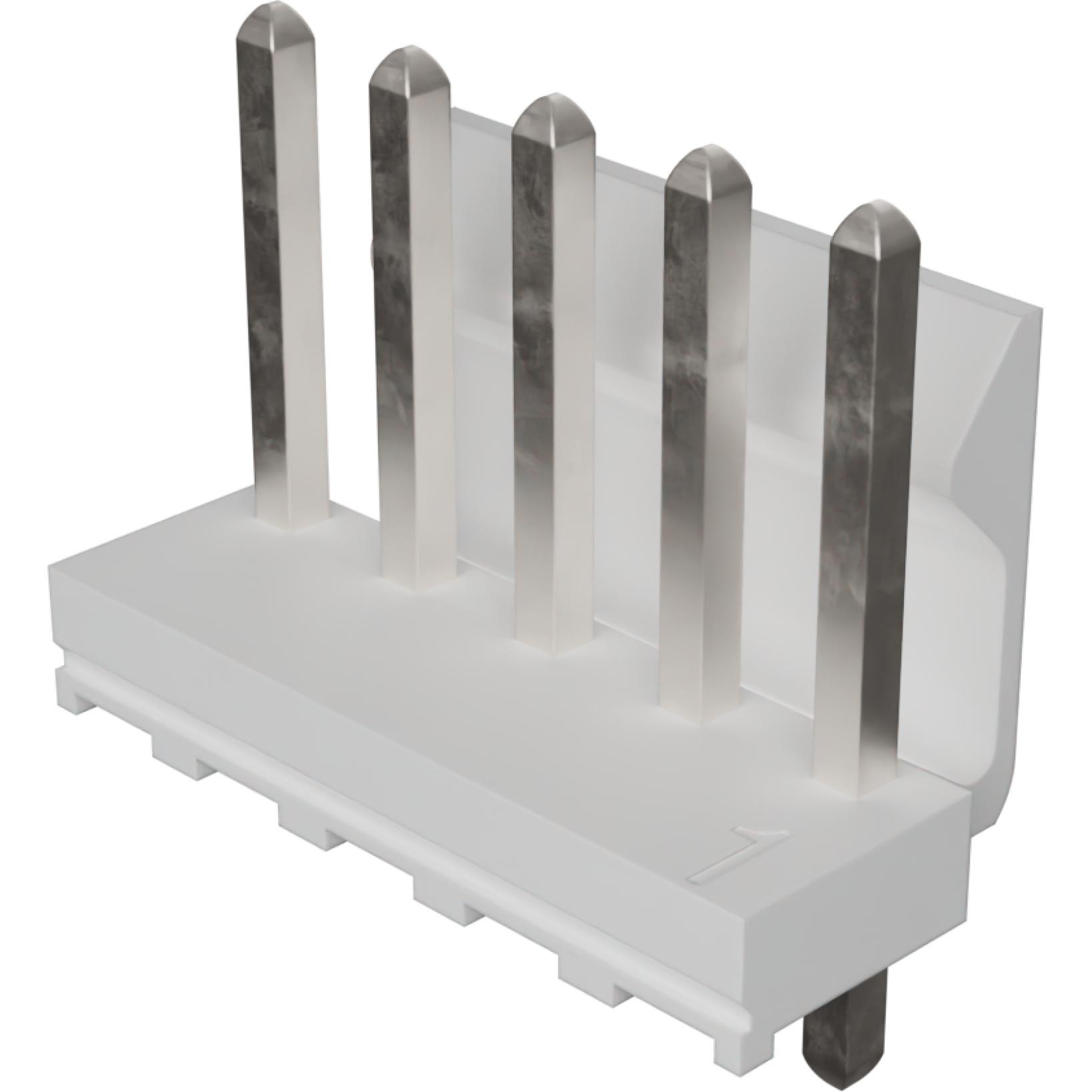

Molex0026604050连接器插头及 PCB 插座
Conn Wire to Board HDR 5 POS 3.96mm Solder ST Top Entry Thru-Hole KK 396 Bag
Other Part Names : 26604050
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| HDR | |
| 5 | |
| 1 | |
| Solder | |
| 3.96 | |
| Straight | |
| Center Slot | |
| 7/Contact | |
| 600VDC|600VAC | |
| 1000 | |
| 10 | |
| -40 | |
| 80 | |
| 25 | |
| Bag | |
| 1.87 | |
| 19.66 | |
| 10.01 | |
| 14.73 | |
| KK 396 | |
| Contact Plating Thickness | (1.52/1.27)um |
| 3.56 | |
| Through Hole |
Use this wire to board 0026604050 header connector from Molex where IDC ribbon cables are used. This HDR connector's 5 contacts that are made out of brass and plated with tin over copper. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 3.96 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 7 A/contact. This product is 19.66 mm long, 14.73 mm tall and 10.01 mm deep. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0026604050 is housed in natural polyester.
