PMP5670.2, 300-mA Inverting Buck-Boost Converter
Texas Instruments이 부품 UCC2813-0Q 을 사용하는 참조 설계
이미지
1 / 1
최종 제품의 경우
- Communications and Telecom
Description

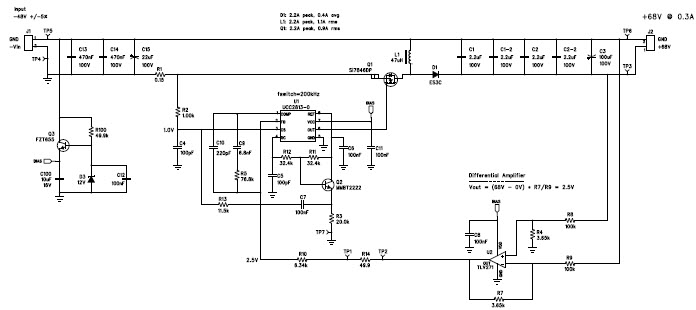

- PMP5670, 68.0-V, 300-mA inverting buck-boost converter has an input voltage of -48V. It is designed to invert a negative input voltage to a positive output voltage
최종 제품의 경우
-
Conversion TypeDC to DC
-
Input Voltage-45 to -51 V
-
Output Voltage68 V
-
Output Current0.3 A
-
Output Power20.4 W
-
TopologyBuck Boost- Inverting
피쳐링 부품 (4)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TLV2711IDBVR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier R-R O/P ±5V/10V 5-Pin SOT-23 T/R | 구매 | |
|
|
TLV2711IDBVT | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier R-R O/P ±5V/10V 5-Pin SOT-23 T/R | 구매 | |
|
|
TLV2711IDBVTG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier R-R O/P ±5V/10V 5-Pin SOT-23 T/R | 구매 | |
|
|
TLV2711IDBVRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Low Power Amplifier R-R O/P ±5V/10V 5-Pin SOT-23 T/R | 구매 | |
