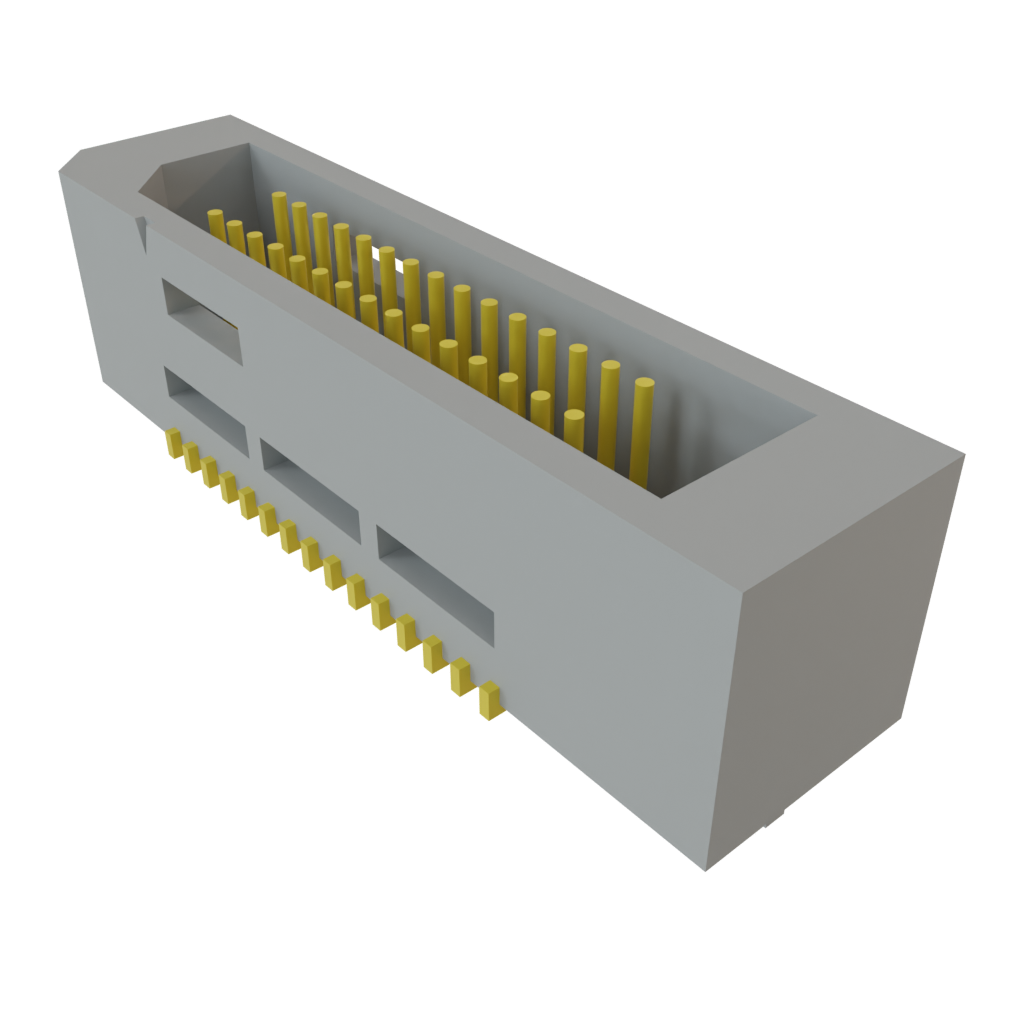

SamtecTEM-115-02-03.0-H-D-WTCabezales del conector y receptáculos PCB

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded TEM-115-02-03.0-H-D-WT header connector from Samtec. This HDR connector's 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.8 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 2.6 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TEM-115-02-03.0-H-D-WT is housed in black liquid crystal polymer. This product is 21 mm long, 5.61 mm tall and 5.5 mm deep.
